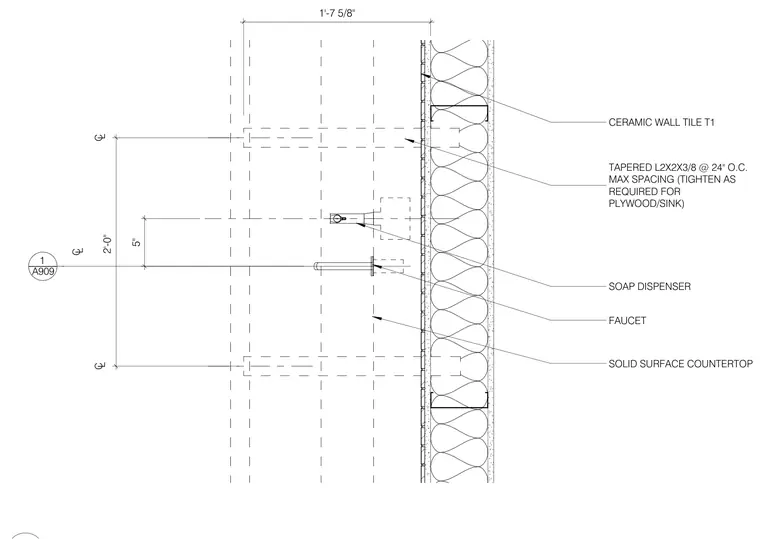

A solid surface countertop mounts against a stud wall finished with ceramic wall tile. Tapered L2x2x3/8 angles spaced at twenty-four inches on center maximum support the countertop and sink assembly. A soap dispenser and faucet mount through the countertop and wall assembly at specified centerlines.
1 A909 _____ 5" SOAP DISPENSER TAPERED L2X2X3/8 @ 24" O.C. MAX SPACING (TIGHTEN AS REQUIRED FOR PLYWOOD/SINK) FAUCET 2'-0" CL 1'-7 5/8" CERAMIC WALL TILE T1 CL CL SOLID SURFACE COUNTERTOP
