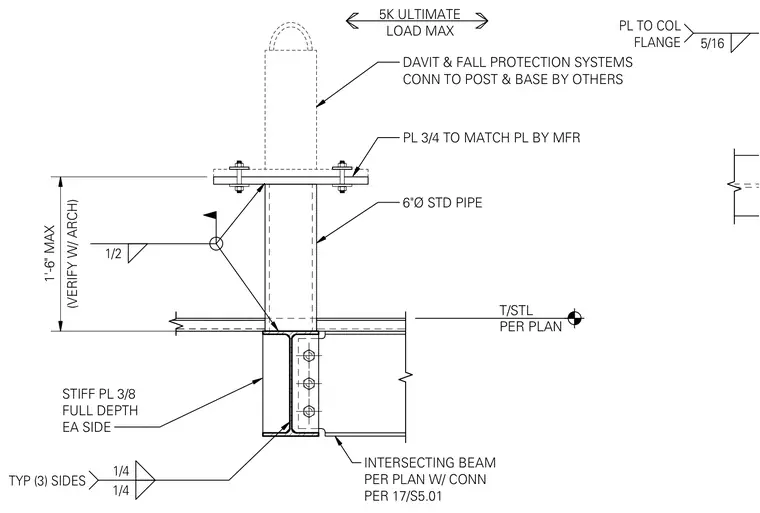

A six-inch diameter standard pipe pedestal supports a davit and fall protection system connection furnished by others. A three-quarter-inch base plate matches the manufacturer's plate requirements and connects with anchor bolts. The pedestal welds to the top of a column with a one-half-inch fillet weld, backed by three-eighths-inch full depth stiffener plates on each side of the column flange. An intersecting beam connects per plan with connections detailed on sheet 17/S5.01.
5/16 PL TO COL FLANGE STIFF PL 3/8 FULL DEPTH EA SIDE (VERIFY W/ ARCH) 1'-6" MAX DAVIT & FALL PROTECTION SYSTEMS CONN TO POST & BASE BY OTHERS PL 3/4 TO MATCH PL BY MFR 6"Ø STD PIPE 1/4 1/4 TYP (3) SIDES 1/2 T/STL PER PLAN INTERSECTING BEAM PER PLAN W/ CONN PER 17/S5.01 5K ULTIMATE LOAD MAX
