A five-inch concrete housekeeping slab sits atop a structural slab on metal deck, with sizing and location coordinated per the mechanical contractor. Number 4 reinforcing bars are centered in the housekeeping pad in each direction at twelve inches on center. The housekeeping pad is anchored to the structural slab below using number 4 dowels set with epoxy at twenty-four inches on center each way, starting layout six inches from the edge of the slab. Slab reinforcement is tied to the dowels, and dowels are installed in the center of the metal deck flutes. At the contractor's option, the epoxy dowels may be replaced with number 4 bars cast directly into the slab.

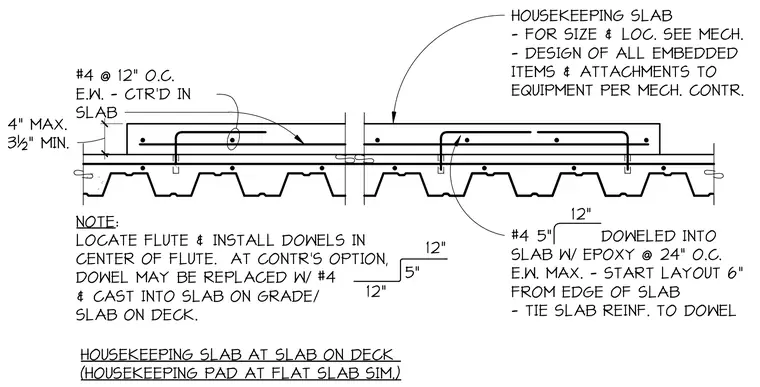

HOUSEKEEPING SLAB AT SLAB ON DECK (HOUSEKEEPING PAD AT FLAT SLAB SIM.) 4" #4 DOWELED INTO SLAB W/ EPOXY @ 24" O.C. E.W. MAX. - START LAYOUT 6" FROM EDGE OF SLAB - TIE SLAB REINF. TO DOWEL 12" 5" HOUSEKEEPING SLAB - FOR SIZE & LOC. SEE MECH. - DESIGN OF ALL EMBEDDED ITEMS & ATTACHMENTS TO EQUIPMENT PER MECH. CONTR. #4 @ 12" O.C. E.W. - CTR'D IN SLAB NOTE: LOCATE FLUTE & INSTALL DOWELS IN CENTER OF FLUTE. AT CONTR'S OPTION, DOWEL MAY BE REPLACED W/ #4 & CAST INTO SLAB ON GRADE/ SLAB ON DECK. 12" 5" 12" 4" MAX. 3½" MIN.
