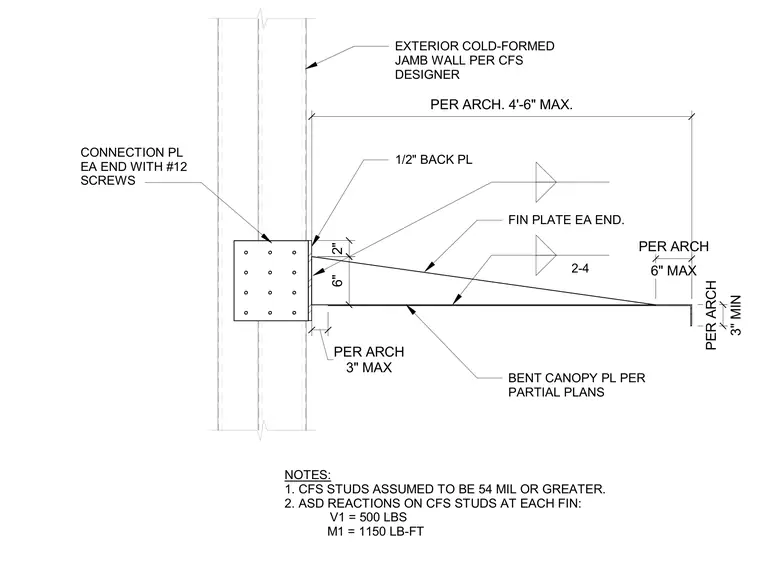

A bent canopy plate projects from an exterior cold-formed steel jamb wall, supported by fin plates at each end. A one-half-inch back plate connects to the jamb wall using number twelve screws, with the cold-formed steel studs assumed to be fifty-four mil or greater in gauge. The connection transfers allowable stress design reactions of five hundred pounds shear and eleven hundred fifty pound-feet moment at each fin.
EXTERIOR COLD-FORMED JAMB WALL PER CFS DESIGNER BENT CANOPY PL PER PARTIAL PLANS 6" 3" MAX PER ARCH 6" MAX PER ARCH PER ARCH. 4'-6" MAX. 3" MIN PER ARCH 2-4 2" FIN PLATE EA END. NOTES: 1. CFS STUDS ASSUMED TO BE 54 MIL OR GREATER. 2. ASD REACTIONS ON CFS STUDS AT EACH FIN: V1 = 500 LBS M1 = 1150 LB-FT 1/2" BACK PL CONNECTION PL EA END WITH #12 SCREWS
