Moment Frame Beam to Column Connection at Floor

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Floors / Slabs Decks Anchors / Embeds Connections / Plates

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

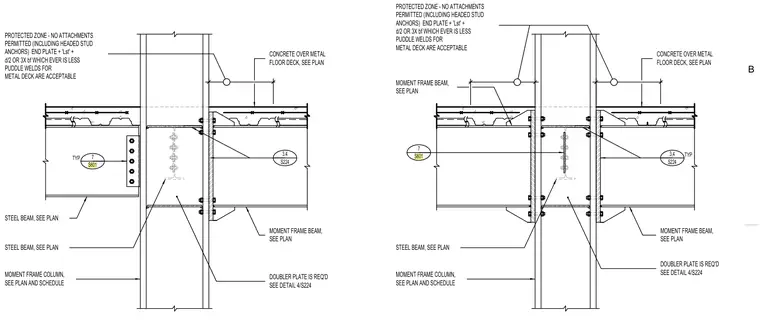

A moment frame beam-to-column connection at the floor level utilizes steel moment frame beams framing into a moment frame steel column sized per plan and schedule. An end plate connection secures the beam to the column flange, complemented by a doubler plate at the column web as required per detail. A concrete slab over a metal floor deck bears against the assembly, maintaining a designated protected zone where attachments, including headed stud anchors, are prohibited within a specified distance from the column face. Puddle welds for the metal deck and weld details are provided where indicated.
