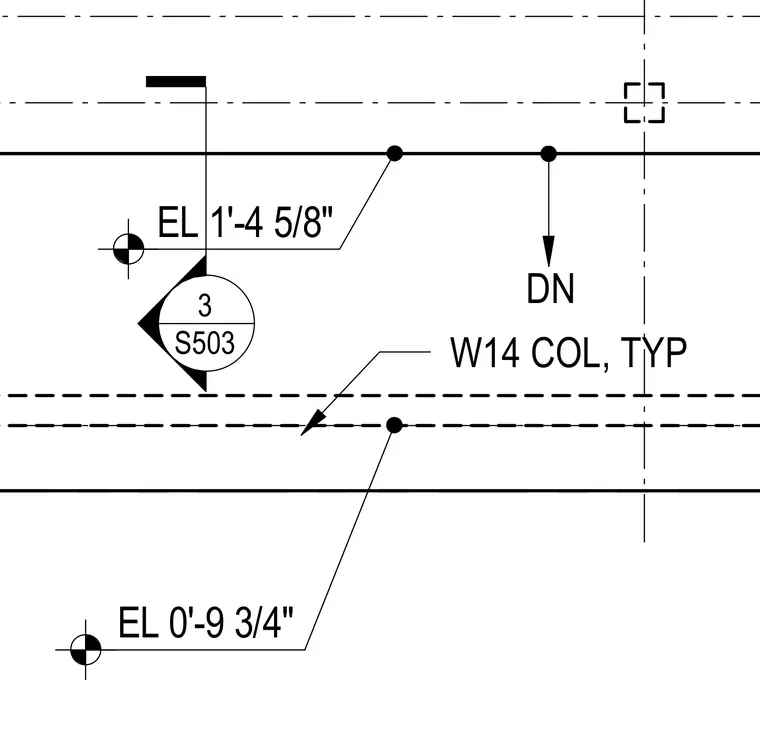

This structural detail shows a typical wide-flange W14 steel column with associated elevation markers. The drawing establishes structural reference levels at 1'-4 5/8" and 0'-9 3/4". A detail reference callout points to sheet S503.
