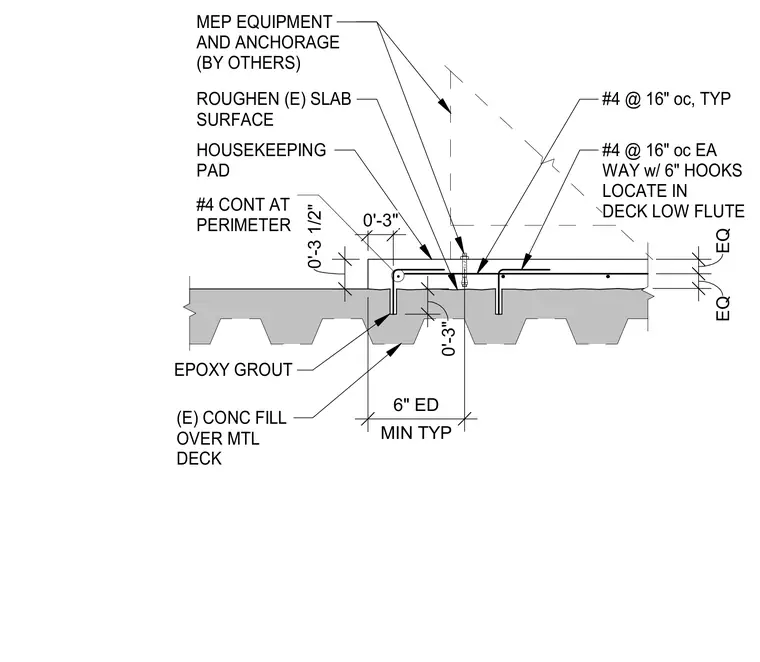

A concrete housekeeping pad sits atop a roughened existing concrete fill over metal deck slab, bedded with epoxy grout. The pad is reinforced with number 4 bars at sixteen inches on center each way with six-inch hooks located in the deck low flute, supplemented by a number 4 continuous bar at the perimeter. Mechanical, electrical, and plumbing equipment with its anchorage is provided by others, set with a minimum typical six-inch edge distance.
EQ EQ ROUGHEN (E) SLAB SURFACE HOUSEKEEPING PAD #4 CONT AT PERIMETER 0'-3" 0'-3 1/2" 0'-3" EPOXY GROUT (E) CONC FILL OVER MTL DECK #4 @ 16" oc, TYP #4 @ 16" oc EA WAY w/ 6" HOOKS LOCATE IN DECK LOW FLUTE MEP EQUIPMENT AND ANCHORAGE (BY OTHERS) MIN TYP 6" ED
