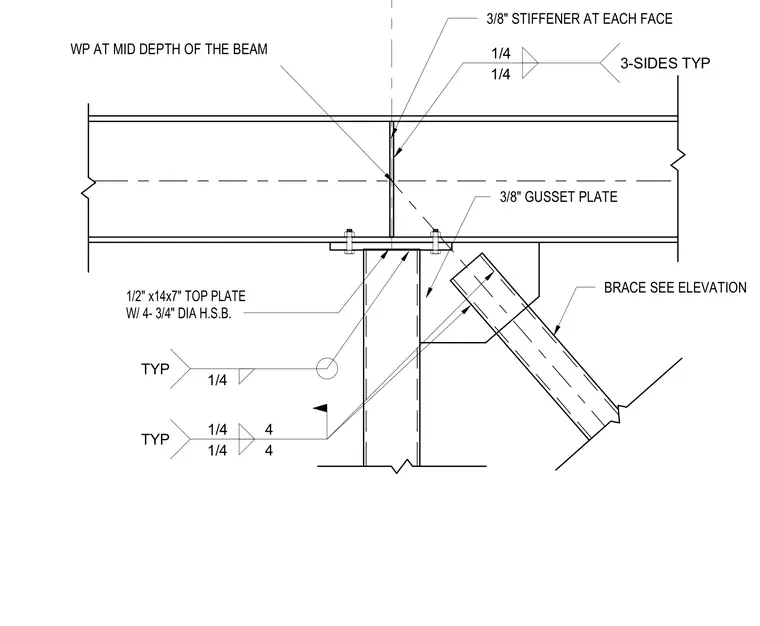

A structural steel brace connects to the underside of a horizontal beam via a three-eighths-inch gusset plate welded with quarter-inch fillet welds on three sides typical. A working point is located at the mid-depth of the beam aligned with a three-eighths-inch stiffener plate at each face of the beam web. A one-half-inch by fourteen-inch by seven-inch top plate is secured with four three-quarter-inch diameter high-strength bolts.
1/4 4 1/4 4 TYP 1/4 1/4 3-SIDES TYP WP AT MID DEPTH OF THE BEAM 3/8" STIFFENER AT EACH FACE BRACE SEE ELEVATION 3/8" GUSSET PLATE 1/2" x14x7" TOP PLATE W/ 4- 3/4" DIA H.S.B. 1/4 TYP
