A concrete slab of thickness determined per the deck schedule bears on a metal deck oriented perpendicular to an edge beam per plan. A ten-gauge closure plate supports the edge of the deck, secured with one continuous number four reinforcing bar unless noted otherwise. Additional dowels are provided to match the slab reinforcement. A two-foot-four-inch dimension spans from the edge to the center of the supporting structural steel member.

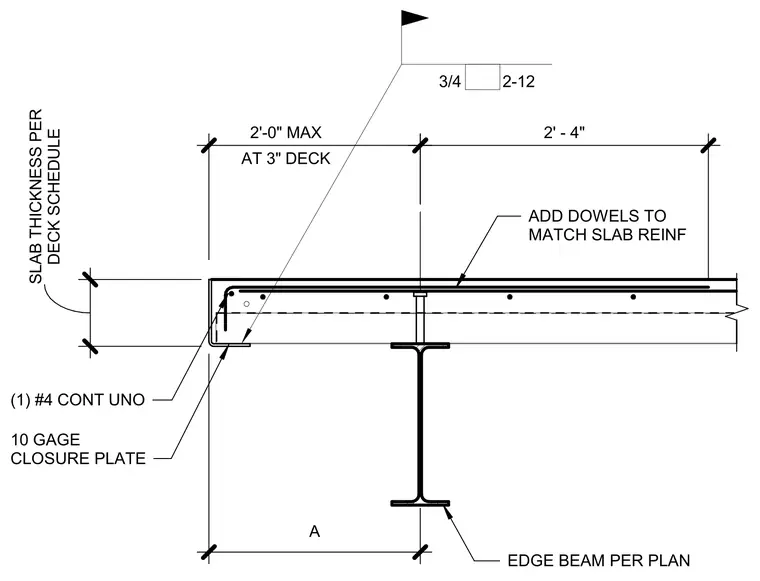

AT 3" DECK 2'-0" MAX 10 GAGE CLOSURE PLATE (1) #4 CONT UNO ADD DOWELS TO MATCH SLAB REINF EDGE BEAM PER PLAN 3/4 2-12 A 2' - 4" DECK SCHEDULE SLAB THICKNESS PER
