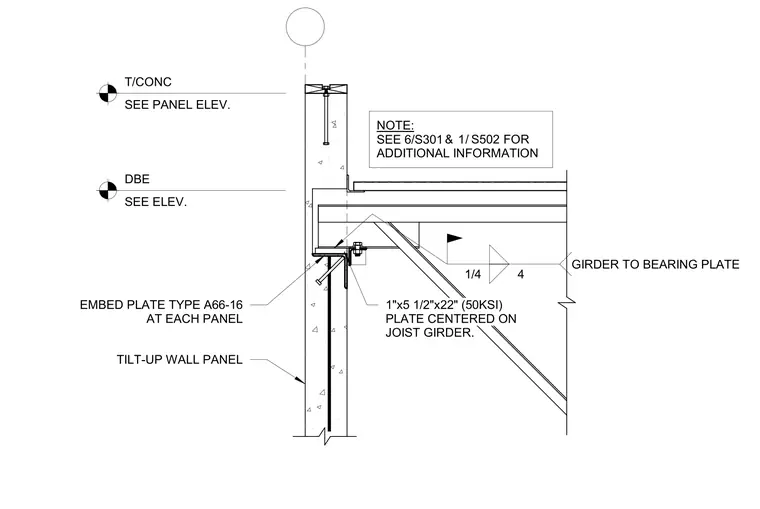

The joist girder bears onto a 1-inch by 5 1/2-inch by 22-inch 50-ksi steel bearing plate, which is centered on the joist girder and welded to the wall embed. The assembly utilizes an A66-16 type embed plate cast into the tilt-up wall panel. The connection between the girder and the bearing plate is secured with a 1/4-inch fillet weld, 4 inches in length. Refer to panel elevations for top of concrete and design bearing elevation markers, and consult sheets 6/S301 and 1/S502 for additional structural information.
Text on the drawing
TILT-UP WALL PANEL T/CONC SEE PANEL ELEV. DBE SEE ELEV. NOTE: SEE & FOR ADDITIONAL INFORMATION EMBED PLATE TYPE A66-16 AT EACH PANEL 1"x5 1/2"x22" (50KSI) PLATE CENTERED ON JOIST GIRDER. 1/4 4 SEE 6/S301 / 1 S502 GIRDER TO BEARING PLATE
