A bent steel closure plate bears on a structural steel beam supporting a metal roof deck at a building overhang. The closure plate thickness varies from 3/16 inch to 5/16 inch based on the overhang length, with a minimum bend radius of 1.5 times the plate thickness. A 3/16 inch fillet weld with a 2-12 spacing connects components where indicated. Clearances of 3/4 inch are maintained at brick veneer, curtain wall, or steel stud framing, and 1 1/4 inch at precast framing. Bypass framing is provided as required per architectural drawings.

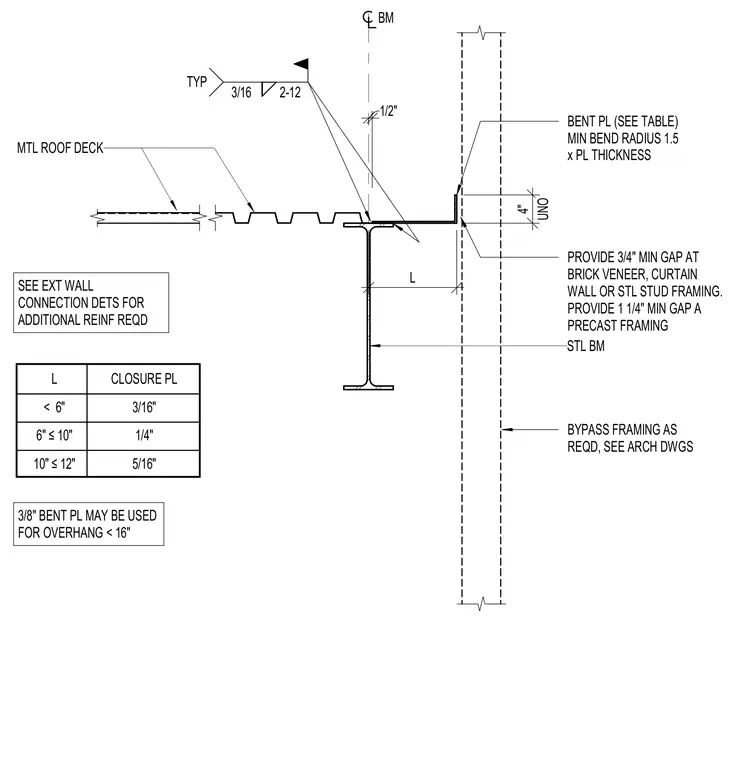

SEE EXT WALL CONNECTION DETS FOR ADDITIONAL REINF REQD L BENT PL (SEE TABLE) MIN BEND RADIUS 1.5 x PL THICKNESS < 6" 6" ≤10" 10" ≤12" CLOSURE PL 3/16" 1/4" 5/16" STL BM L 1/2" BM 3/8" BENT PL MAY BE USED FOR OVERHANG < 16" MTL ROOF DECK MTL ROOF DECK UNO 4" PROVIDE 3/4" MIN GAP AT BRICK VENEER, CURTAIN WALL OR STL STUD FRAMING. PROVIDE 1 1/4" MIN GAP A PRECAST FRAMING BYPASS FRAMING AS REQD, SEE ARCH DWGS 3/16 2-12 TYP
