Steel welded bar grating spans between a concrete wall and a concrete slab, supported at the wall by an L4x2x3/16 angle. The support angle is secured with 1/2-inch-diameter by 4-1/2-inch expansion anchors spaced at 2 feet 0 inches on center, with a minimum of two anchors per angle piece. The bar grating is welded to the supporting angle per plan.

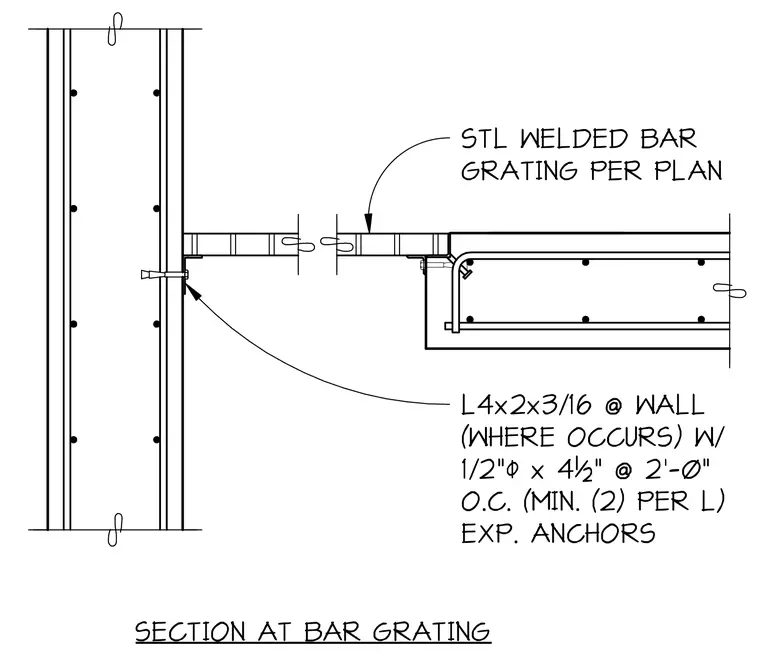

STL WELDED BAR GRATING PER PLAN L4x2x3/16 @ WALL (WHERE OCCURS) W/ 1/2"< x 4½" @ 2'-0" O.C. (MIN. (2) PER L) EXP. ANCHORS SECTION AT BAR GRATING
