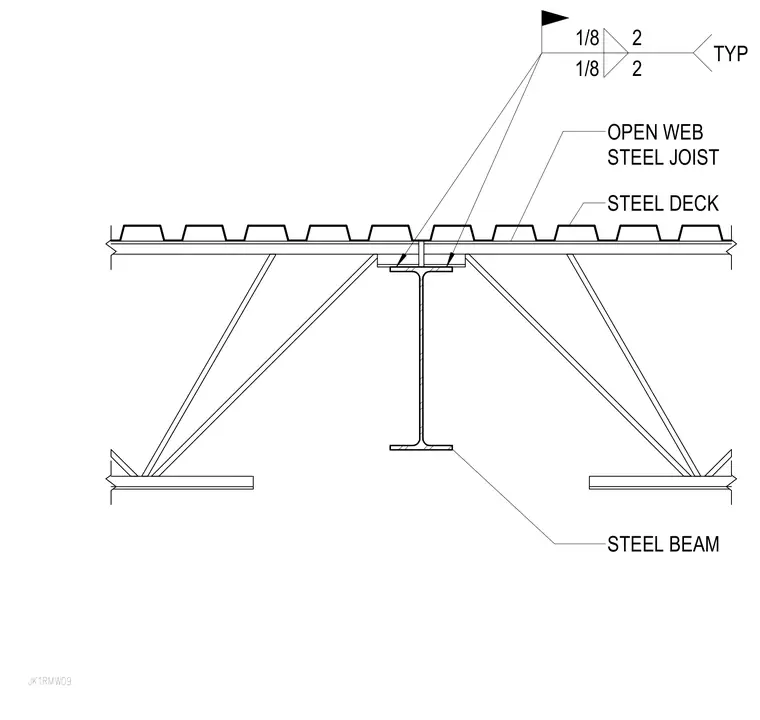

An open web steel joist bears directly on the top flange of a supporting steel beam, positioned beneath a corrugated steel deck. The joist seats are welded to the beam top flange with typical fillet welds sized at one-eighth inch with a two-inch length.
