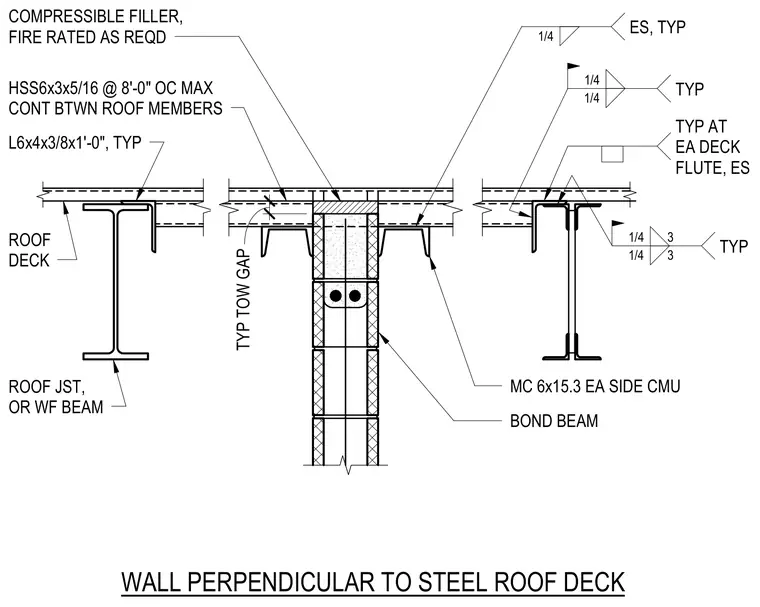

A concrete masonry unit bond beam wall intersects perpendicular to steel roof deck framing supported by wide-flange beams or roof joists. An HSS6x3x5/16 member spans continuously between roof members at a maximum spacing of eight feet on center. L6x4x3/8 angles measuring one foot long are welded with quarter-inch fillets typical at each deck flute. A fire-rated compressible filler is installed at the top of the masonry wall beneath the roof deck. Channel sections MC6x15.3 are placed on each side of the CMU wall.
TYP 3 3 1/4 1/4 MC 6x15.3 EA SIDE CMU BOND BEAM ROOF DECK ROOF JST, OR WF BEAM COMPRESSIBLE FILLER, FIRE RATED AS REQD WALL PERPENDICULAR TO STEEL ROOF DECK L6x4x3/8x1'-0", TYP HSS6x3x5/16 @ 8'-0" OC MAX CONT BTWN ROOF MEMBERS TYP 1/4 1/4 TYP AT EA DECK FLUTE, ES 1 1/2" TYP TOW GAP ES, TYP 1/4
