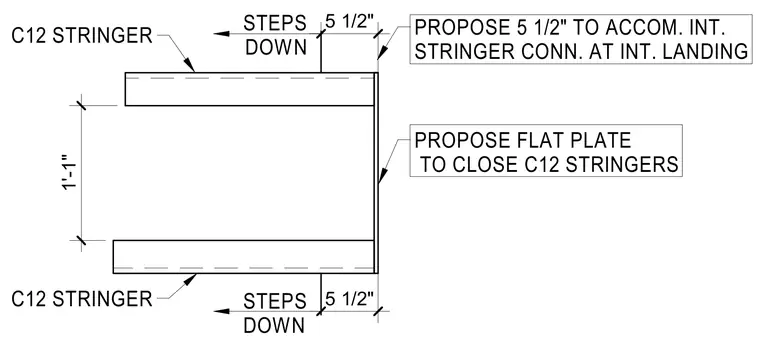

Two parallel C12 channel stringers frame into an intermediate landing with a space of one foot one inch between them. A proposed flat plate closes the ends of the C12 stringers. An additional five-and-a-half-inch dimension accommodates the intermediate stringer connection at the intermediate landing.
1'-1" 5 1/2" STEPS DOWN C12 STRINGER C12 STRINGER 5 1/2" STEPS DOWN PROPOSE FLAT PLATE TO CLOSE C12 STRINGERS PROPOSE 5 1/2" TO ACCOM. INT. STRINGER CONN. AT INT. LANDING
