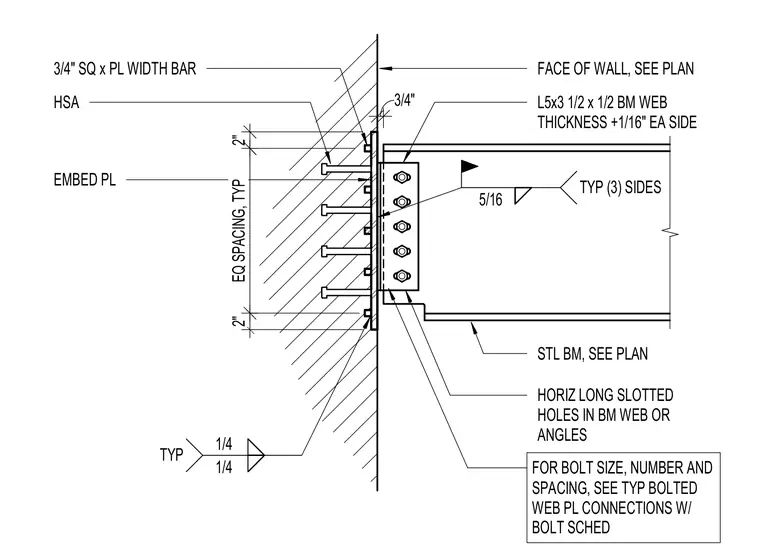

A steel beam connects to a concrete wall face using an embed plate anchored with HSA studs spaced evenly with two-inch clear margins at top and bottom. A square bar welded to the plate supports the beam connection flange. The beam web attaches via structural angles featuring horizontal long slotted holes and bolts sized per schedule.
HORIZ LONG SLOTTED HOLES IN BM WEB OR ANGLES STL BM, SEE PLAN FACE OF WALL, SEE PLAN EMBED PL HSA 2" 3/4" 2" EQ SPACING, TYP 3/4" SQ x PL WIDTH BAR 1/4 1/4 TYP 5/16 TYP (3) SIDES L5x3 1/2 x 1/2 BM WEB THICKNESS +1/16" EA SIDE FOR BOLT SIZE, NUMBER AND SPACING, SEE TYP BOLTED WEB PL CONNECTIONS W/ BOLT SCHED
