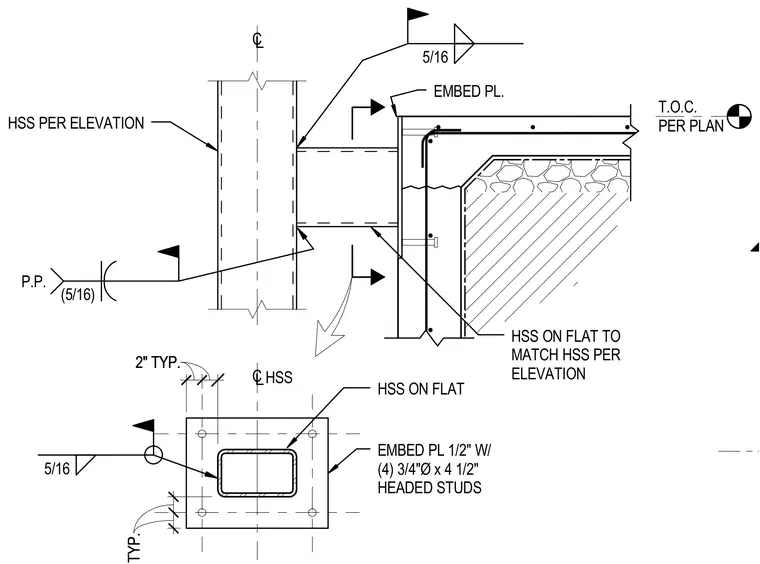

A hollow structural section member is oriented on the flat and welded to an embed plate with a five-sixteenth-inch fillet weld. The embed plate measures one-half-inch thick and is secured with four three-quarter-inch diameter by four-and-one-half-inch long headed studs embedded in concrete. A vertical hollow structural section column is connected adjacent to the assembly per elevation requirements with a five-sixteenth-inch fillet weld. Typical two-inch dimensions locate the fasteners and plates relative to the centerline.
L C 5/16 T.O.C. PER PLAN EMBED PL. HSS PER ELEVATION (5/16) P.P. HSS ON FLAT TO MATCH HSS PER ELEVATION L C 2" TYP. 2" TYP. HSS EMBED PL 1/2" W/ (4) 3/4"Ø x 4 1/2" HEADED STUDS HSS ON FLAT 5/16
