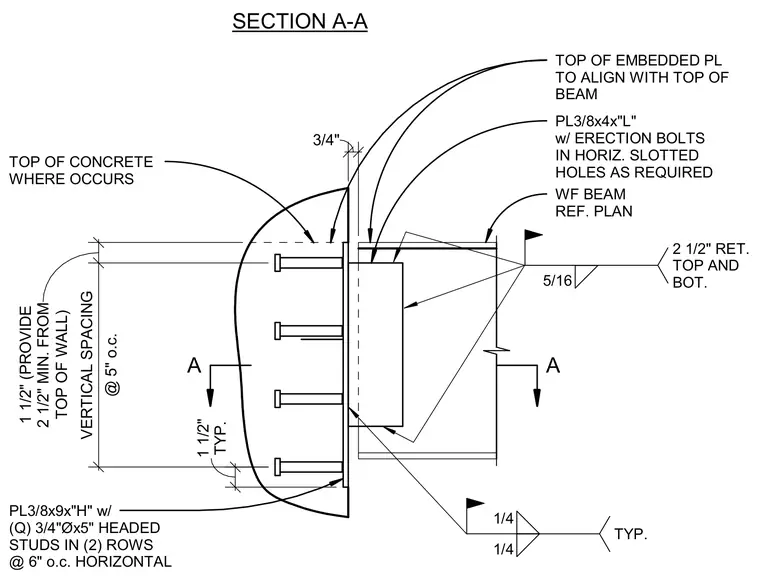

A structural steel wide flange beam bears against and connects to a concrete wall. An embedded steel plate measuring 3/8 inch by 9 inches by H, anchored with two rows of three-quarter inch diameter by five-inch headed studs spaced at six inches on center horizontally, is cast flush with the concrete face. A 3/8-inch by 4-inch plate with erection bolts in horizontal slotted holes connects the beam to the embedded plate. A five-sixteenths-inch fillet weld secures the connection at the top and bottom with a 2 1/2-inch return, while typical one-quarter-inch fillet welds are provided elsewhere. The top of the embedded plate is aligned to match the top of the beam.
A A SECTION A-A TOP OF CONCRETE WHERE OCCURS PL3/8x4x"L" w/ ERECTION BOLTS IN HORIZ. SLOTTED HOLES AS REQUIRED WF BEAM REF. PLAN 5/16 2 1/2" RET. TOP AND BOT. 1/4 1/4 TYP. PL3/8x9x"H" w/ (Q) 3/4"Øx5" HEADED STUDS IN (2) ROWS @ 6" o.c. HORIZONTAL TOP OF WALL) 1 1/2" (PROVIDE 2 1/2" MIN. FROM @ 5" o.c. VERTICAL SPACING TOP OF EMBEDDED PL TO ALIGN WITH TOP OF BEAM 3/4" TYP. 1 1/2"
