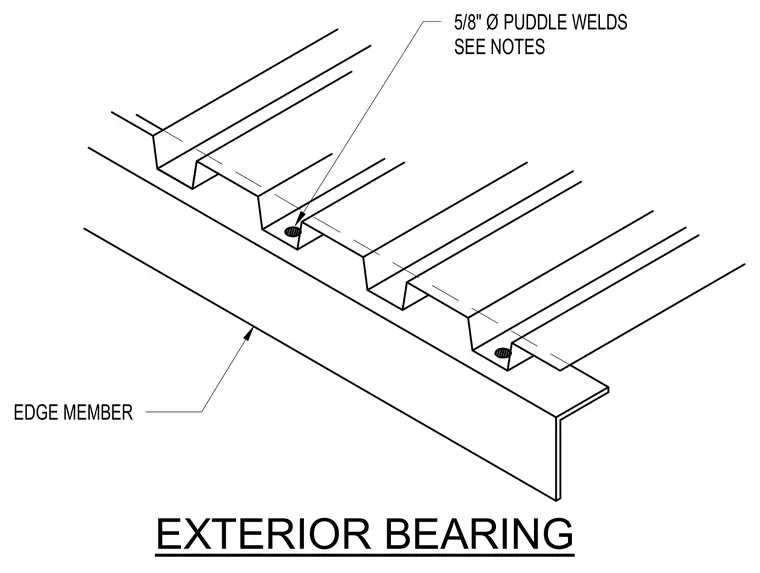

Corrugated metal deck bears directly on a structural steel edge member. The metal deck flutes are secured to the support below using five-eighths inch diameter puddle welds placed at intervals specified in the structural notes.
