Structural · S-V23EV

Studded Base Plate and Gusset Connection at Pile Cap

Materials

Concrete Steel Masonry / CMU

Elements

Foundations / Footings Bracing Anchors / Embeds Connections / Plates

Connections

Gusset Plate Bracing Connection Welded Connection Embed Plate

About this detail

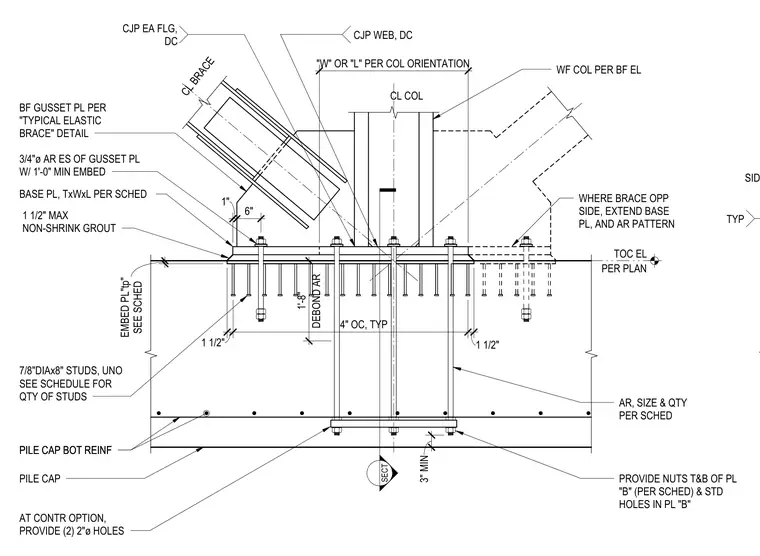

A wide-flange steel column bears on a base plate atop a reinforced concrete pile cap, connected by anchor rods extending to a bottom plate assembly with top and bottom nuts. An inclined structural brace frames into a gusset plate welded to the base plate using complete joint penetration welds on the flanges and web. The embed plate features welded shear studs spaced at four inches on center, set within a non-shrink grout layer beneath the base plate. Additional anchor rods with minimum embedment and debonded regions secure the gusset plate configuration, with specific sizes, quantities, and plate dimensions determined per the engineering schedule.
