Structural · S-TZWH5

Bottom Flange Brace to Slab

Materials

Steel

Elements

Beams Floors / Slabs Decks Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

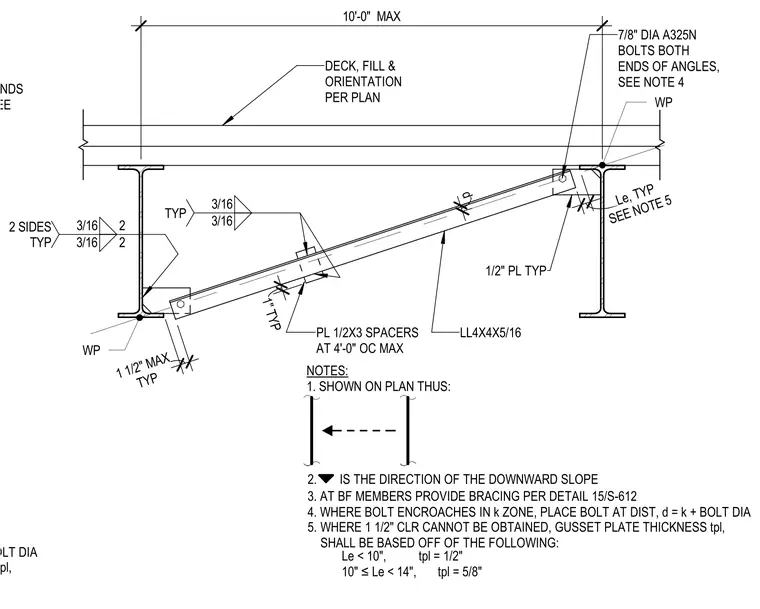

LL4x4x5/16 angles connect to steel framing members beneath a concrete fill and metal deck assembly. The brace angles attach at each end via seven-eighths-inch diameter A325N bolts, with 3/16-inch fillet welds on two sides typical at connection plates. One-half-inch by three-inch plate spacers are placed along the brace at a maximum of four feet on center. General notes dictate specific edge distances and gusset plate thickness criteria where bolts encroach into the k-zone or where standard clearances cannot be obtained.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
