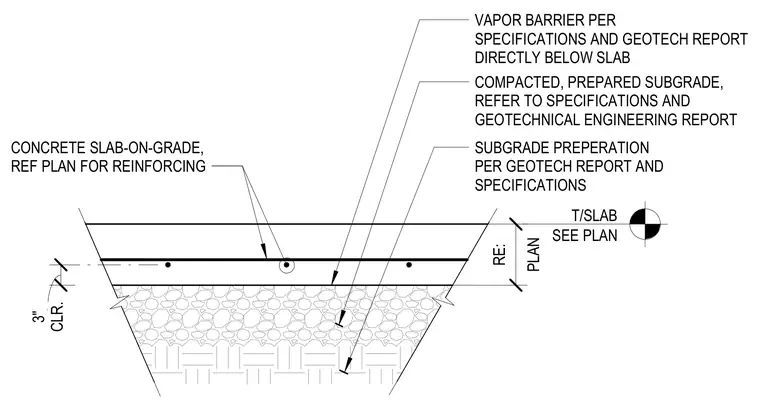

A concrete slab-on-grade rests directly upon a vapor barrier positioned over a compacted, prepared subgrade. The subgrade preparation and vapor barrier installation follow project specifications and the geotechnical engineering report. The reinforced concrete slab requires reinforcing per structural plans with a specified concrete clear cover.
COMPACTED, PREPARED SUBGRADE, REFER TO SPECIFICATIONS AND GEOTECHNICAL ENGINEERING REPORT SUBGRADE PREPERATION PER GEOTECH REPORT AND SPECIFICATIONS VAPOR BARRIER PER SPECIFICATIONS AND GEOTECH REPORT DIRECTLY BELOW SLAB CONCRETE SLAB-ON-GRADE, REF PLAN FOR REINFORCING PLAN RE: CLR. 3" CONCRETE SLAB-ON-GRADE, REF PLAN FOR REINFORCING T/SLAB SEE PLAN
