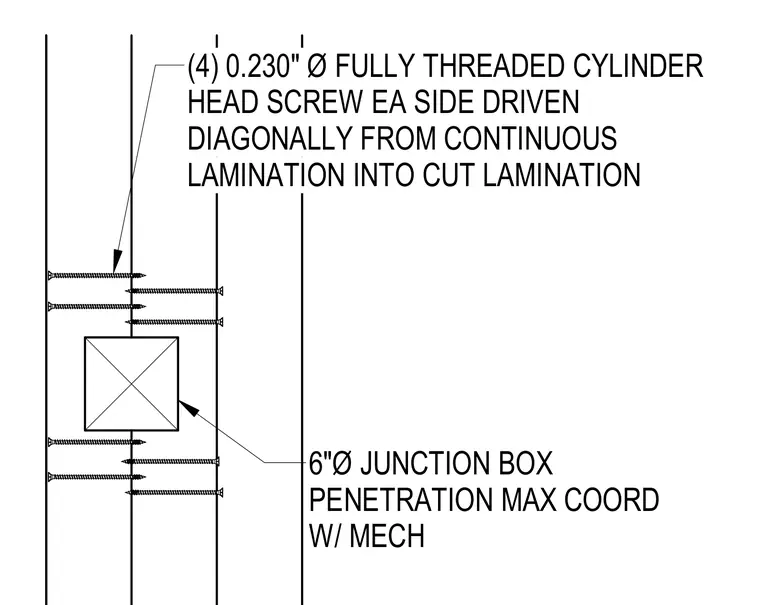

A six-inch diameter junction box penetrates a laminated assembly requiring coordination with mechanical services. Four zero-point-two-three-zero-inch diameter fully threaded cylinder head screws are driven diagonally on each side from the continuous lamination into the cut lamination.
(4) 0.230" Ø FULLY THREADED CYLINDER HEAD SCREW EA SIDE DRIVEN DIAGONALLY FROM CONTINUOUS LAMINATION INTO CUT LAMINATION 6"Ø JUNCTION BOX PENETRATION MAX COORD W/ MECH
