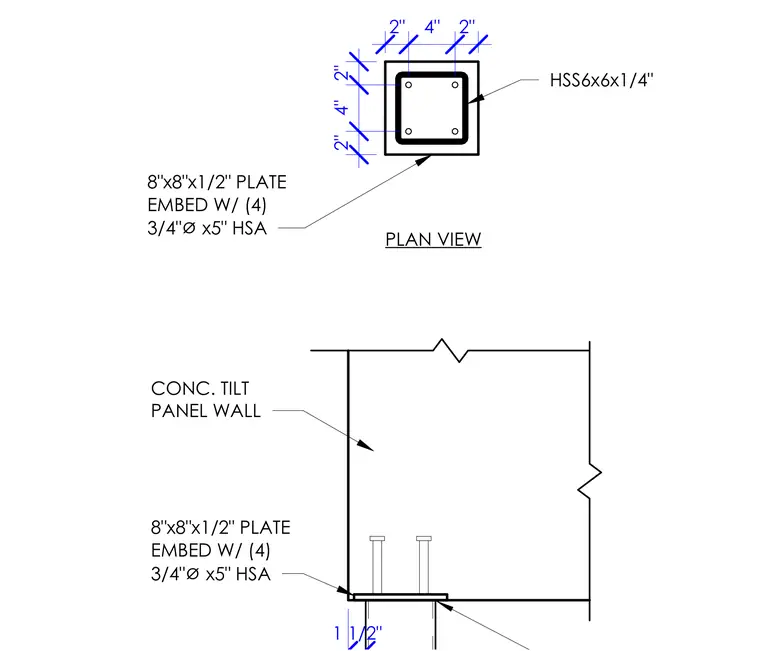

An HSS 6x6x1/4 hollow structural section column ties into a concrete tilt-up panel wall using an 8x8x1/2 inch embed plate. The plate anchors into the concrete with four 3/4 inch diameter by 5 inch headed stud anchors. Edge distances and dimensions are detailed in plan view.
2" 4" 2" 2" 4" 2" HSS6x6x1/4" 8"x8"x1/2" PLATE EMBED W/ (4) 3/4" ⌀ x5" HSA 1 1/2" 8"x8"x1/2" PLATE EMBED W/ (4) 3/4" ⌀ x5" HSA PLAN VIEW CONC. TILT PANEL WALL A 24 o o o o
