A schedule 40 pipe sleeve passes through the center third of a reinforced concrete beam supporting a concrete slab. Additional stirrups of the same size as adjacent beam stirrups are placed with one inch of clearance on each side of the pipe. Beam penetrations require prior review and approval by the structural engineer.

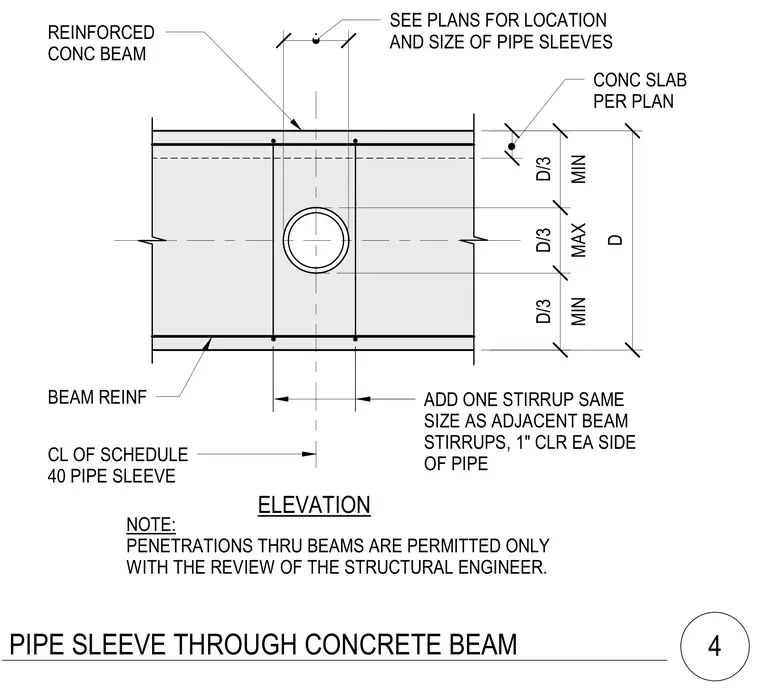

ELEVATION NOTE: PENETRATIONS THRU BEAMS ARE PERMITTED ONLY WITH THE REVIEW OF THE STRUCTURAL ENGINEER. BEAM REINF CL OF SCHEDULE 40 PIPE SLEEVE REINFORCED CONC BEAM ADD ONE STIRRUP SAME SIZE AS ADJACENT BEAM STIRRUPS, 1" CLR EA SIDE OF PIPE SEE PLANS FOR LOCATION AND SIZE OF PIPE SLEEVES . D MIN D/3 MAX D/3 MIN D/3 CONC SLAB PER PLAN PIPE SLEEVE THROUGH CONCRETE BEAM 4
