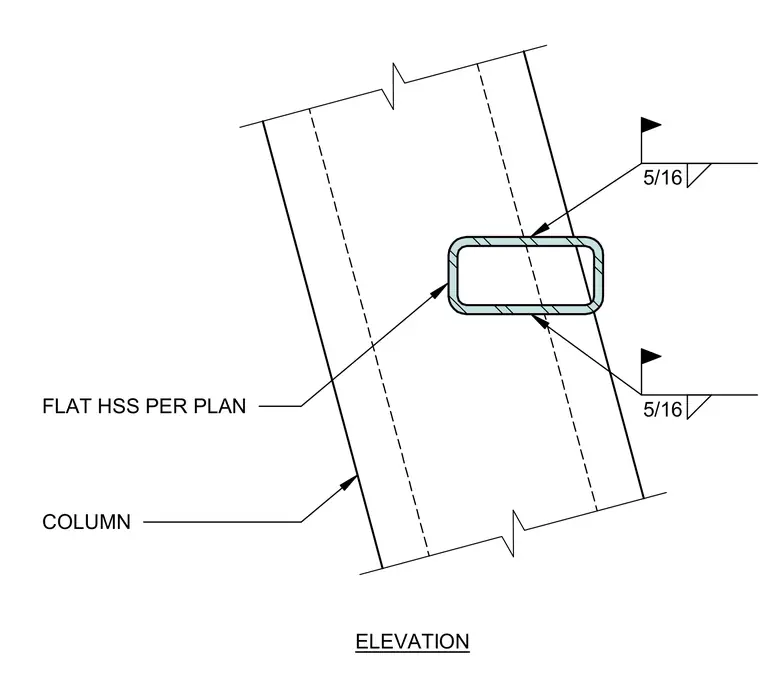

A hollow structural section mullion is welded directly to a box column per plan. The connection is secured with five-sixteenth-inch fillet welds along the top and bottom interfaces of the flat hollow structural section member. The assembly integrates the mullion into the main structural column.
