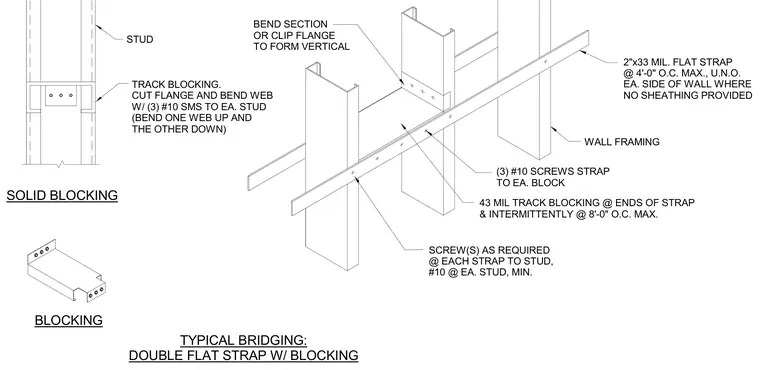

Cold-formed steel wall framing is stabilized with a typical bridging detail utilizing double flat straps and solid track blocking. A 2-inch by 33-mil flat strap runs horizontally at a maximum spacing of 4 feet on center on each side of the wall where no sheathing is provided. Wall studs secure to each strap using minimum number 10 screws as required. Forty-three-mil track blocking is installed at the ends of the strap and intermittently at a maximum of 8 feet on center. Track blocking is fabricated by cutting the flange and bending the web, secured to each stud with three number 10 sheet metal screws.
BEND SECTION OR CLIP FLANGE TO FORM VERTICAL 2"x33 MIL. FLAT STRAP @ 4'-0" O.C. MAX., U.N.O. EA. SIDE OF WALL WHERE NO SHEATHING PROVIDED WALL FRAMING SCREW(S) AS REQUIRED @ EACH STRAP TO STUD, #10 @ EA. STUD, MIN. 43 MIL TRACK BLOCKING @ ENDS OF STRAP & INTERMITTENTLY @ 8'-0" O.C. MAX. TYPICAL BRIDGING: DOUBLE FLAT STRAP W/ BLOCKING (3) #10 SCREWS STRAP TO EA. BLOCK STUD TRACK BLOCKING. CUT FLANGE AND BEND WEB W/ (3) #10 SMS TO EA. STUD (BEND ONE WEB UP AND THE OTHER DOWN) SOLID BLOCKING BLOCKING
