Structural · S-TYZ45

BRBF Beam Stub Connection Protected Zones

Elements

Connections

About this detail

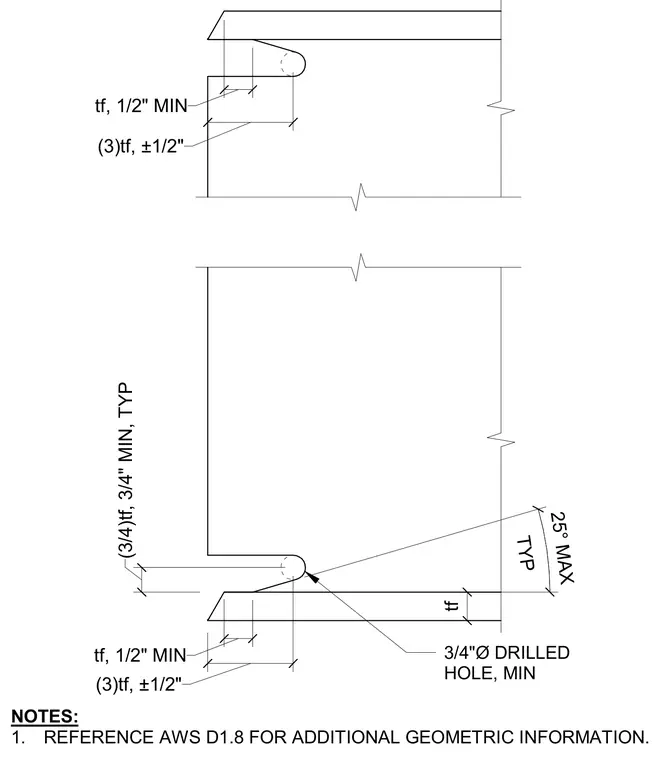

A structural steel beam stub connection features protected zones defined by specific geometric limitations, including a three-flange-thickness dimension and a twenty-five-degree maximum angle. A three-quarter-inch diameter drilled access hole is detailed at the beam web and flange intersection with a minimum one-half-inch flange thickness clearance. Additional geometric constraints mandate minimum clearances related to flange thickness and require compliance with AWS D1.8 for supplemental detailing requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
