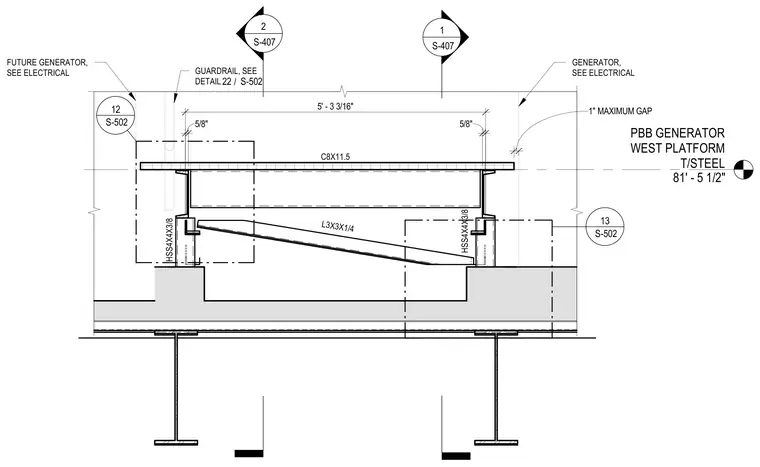

The steel platform assembly consists of C8x11.5 channel framing supported by HSS4x4x3/8 hollow structural section columns with L3x3x1/4 angle bracing below. A one-inch maximum gap separates the platform assembly from adjacent future generator zones. Guardrail connections are coordinated with adjacent structural details.
PBB GENERATOR WEST PLATFORM T/STEEL 81' - 5 1/2" 2 S-407 1 S-407 S-502 12 S-502 13 C8X11.5 L3X3X1/4 HSS4X4X3/8 HSS4X4X3/8 5' - 3 3/16" 5/8" 5/8" GENERATOR, SEE ELECTRICAL GUARDRAIL, SEE DETAIL FUTURE GENERATOR, SEE ELECTRICAL 1" MAXIMUM GAP / 22 S-502
