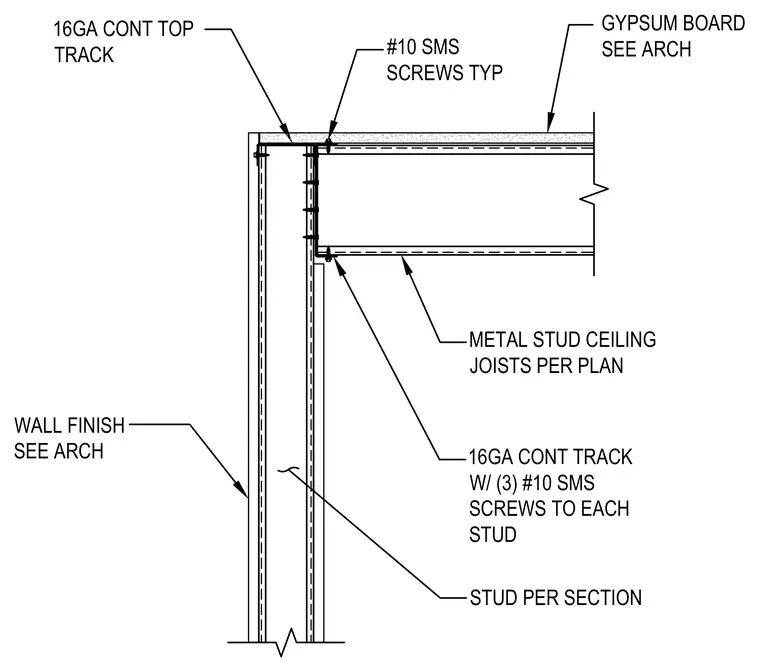

Cold-formed steel ceiling joists frame into a continuous sixteen-gauge top track secured with number ten self-tapping sheet metal screws. A continuous sixteen-gauge track fastens to each wall stud with three number ten self-tapping sheet metal screws. Wall finishes and gypsum board ceilings are installed per architectural specifications over the structural framing.
#10 SMS SCREWS TYP METAL STUD CEILING JOISTS PER PLAN 16GA CONT TRACK W/ (3) #10 SMS SCREWS TO EACH STUD WALL FINISH SEE ARCH 16GA CONT TOP TRACK GYPSUM BOARD SEE ARCH STUD PER SECTION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
