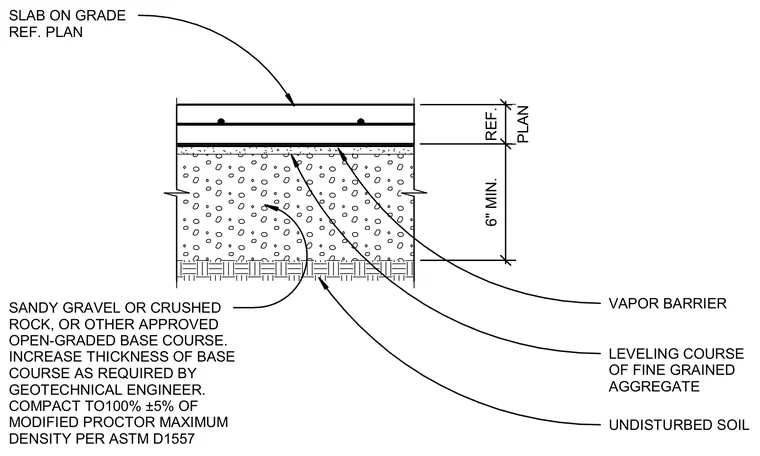

A reinforced concrete slab on grade bears on a vapor barrier placed over a leveling course of fine-grained aggregate. The leveling course sits on a minimum six-inch base course of sandy gravel, crushed rock, or approved open-graded aggregate supported by undisturbed soil. The base course thickness is increased as required by the geotechnical engineer and compacted to 100% plus or minus 5% of modified Proctor maximum density per ASTM D1557.
VAPOR BARRIER SLAB ON GRADE REF. PLAN PLAN REF. 6" MIN. LEVELING COURSE OF FINE GRAINED AGGREGATE SANDY GRAVEL OR CRUSHED ROCK, OR OTHER APPROVED OPEN-GRADED BASE COURSE. INCREASE THICKNESS OF BASE COURSE AS REQUIRED BY GEOTECHNICAL ENGINEER. COMPACT TO100% ±5% OF MODIFIED PROCTOR MAXIMUM DENSITY PER ASTM D1557 UNDISTURBED SOIL
