Structural · S-TYDP7

Reinforcing Bar Weld Details and Schedule

Materials

Metal (misc.)

Elements

Reinforcing Roof / Floor Openings

Connections

Welded Connection

About this detail

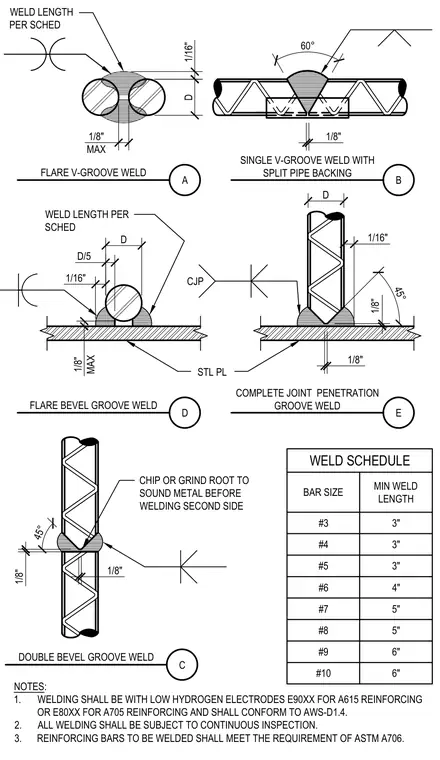

Various welded configurations for reinforcing bars include flare V-groove welds, single V-groove welds with split pipe backing, flare bevel groove welds, complete joint penetration groove welds, and double bevel groove welds. Specific root openings, bevel angles, and fit-up tolerances such as one-eighth inch maximum gaps are designated for each weld type. A companion weld schedule correlates bar sizes ranging from number 3 through number 10 with their corresponding minimum weld lengths. General notes specify the use of low hydrogen electrodes such as E90XX for A615 reinforcing or E80XX for A705 reinforcing in accordance with AWS D1.4, require continuous inspection, and mandate that welded reinforcing bars meet ASTM A706 requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
