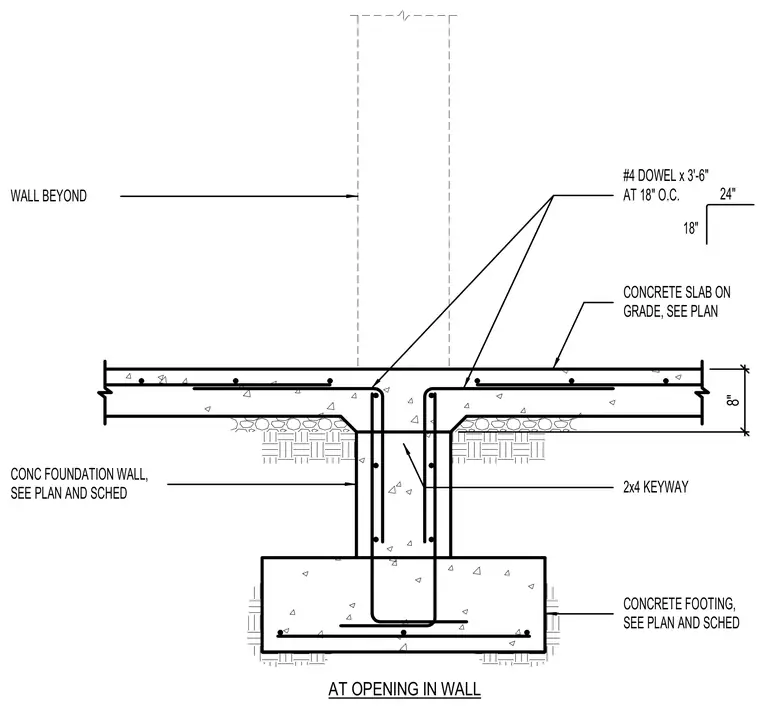

An eight-inch thick concrete slab on grade bears on a concrete foundation wall and is tied together with number four dowels measuring three feet six inches long spaced at eighteen inches on center. The concrete foundation wall rests on a concrete footing sized per plan and schedule, incorporating a two-by-four keyway at the wall opening. A wall beyond is indicated for alignment and spatial context.
CONCRETE SLAB ON GRADE, SEE PLAN WALL BEYOND #4 DOWEL x 3'-6" AT 18" O.C. 24" 18" CONCRETE FOOTING, SEE PLAN AND SCHED CONC FOUNDATION WALL, SEE PLAN AND SCHED AT OPENING IN WALL 2x4 KEYWAY 8"
