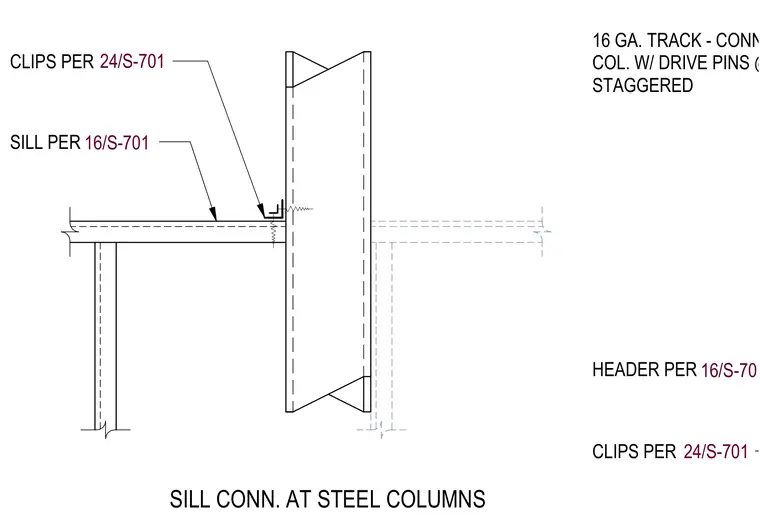

A sixteen gauge steel track connects directly to the face of a structural steel column using drive pins spaced at four inches on center staggered. Framing components including sill and header elements tie into the assembly per scheduled details. The cold-formed steel track bears horizontally against the column flange.
SILL CONN. AT STEEL COLUMNS 16 GA. TRACK - CONNECT TO COL. W/ DRIVE PINS @ 4"oc STAGGERED SILL PER HEADER PER CLIPS PER CLIPS PER 16/S-701 16/S-701 24/S-701 24/S-701
