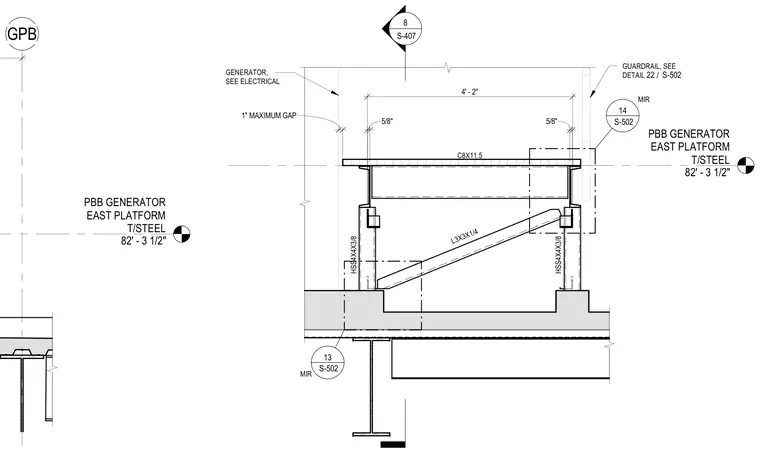

A C8x11.5 steel channel forms the platform framing supported by HSS4x4x3/8 hollow structural section columns and braced with an L3x3x1/4 angle brace. The framing maintains a four-foot two-inch width with specific edge clearances and a one-inch maximum gap relative to the generator. A guardrail is indicated at the edge, and base connections reference secondary detail locations.
GPB PBB GENERATOR EAST PLATFORM T/STEEL 82' - 3 1/2" PBB GENERATOR EAST PLATFORM T/STEEL 82' - 3 1/2" 8 S-407 S-502 14 MIR S-502 13 MIR C8X11.5 L3X3X1/4 HSS4X4X3/8 HSS4X4X3/8 4' - 2" 5/8" 5/8" 1" MAXIMUM GAP GENERATOR, SEE ELECTRICAL GUARDRAIL, SEE DETAIL / 22 S-502
