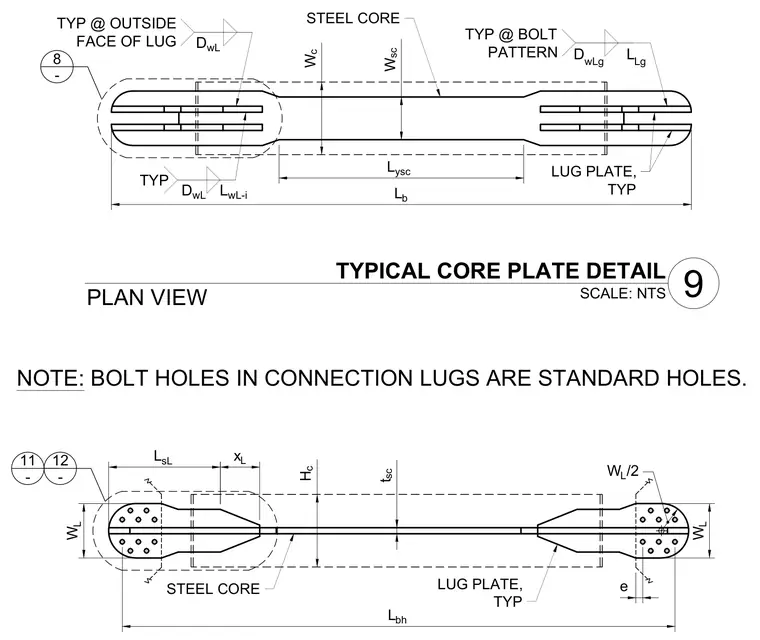

A structural steel core plate assembly includes welded lug plates at each end in plan and elevation views. The connection incorporates standard bolt holes within the connection lugs as noted. Fillet welds secure the lug plates to the steel core plate assembly.
L b L ysc W c W sc D wL 8 - D wL L wL-i L bh L sL x L H c t sc e W L 12 - STEEL CORE LUG PLATE, TYP W L /2 W L TYP D wLg L Lg TYP @ BOLT PATTERN STEEL CORE LUG PLATE, TYP TYP @ OUTSIDE FACE OF LUG 9 TYPICAL CORE PLATE DETAIL SCALE: NTS PLAN VIEW 11 - NOTE: BOLT HOLES IN CONNECTION LUGS ARE STANDARD HOLES.
