A concrete housekeeping pad rests atop a structural concrete slab, featuring a four-and-a-half-inch minimum bond or roughened surface when poured separately. Reinforcement matches the typical topping slab detail, with anchor bolts sized and located as required by the equipment supplier. The structural slab continues underneath, and housekeeping pads on slab-on-grade and composite slabs remain similar.

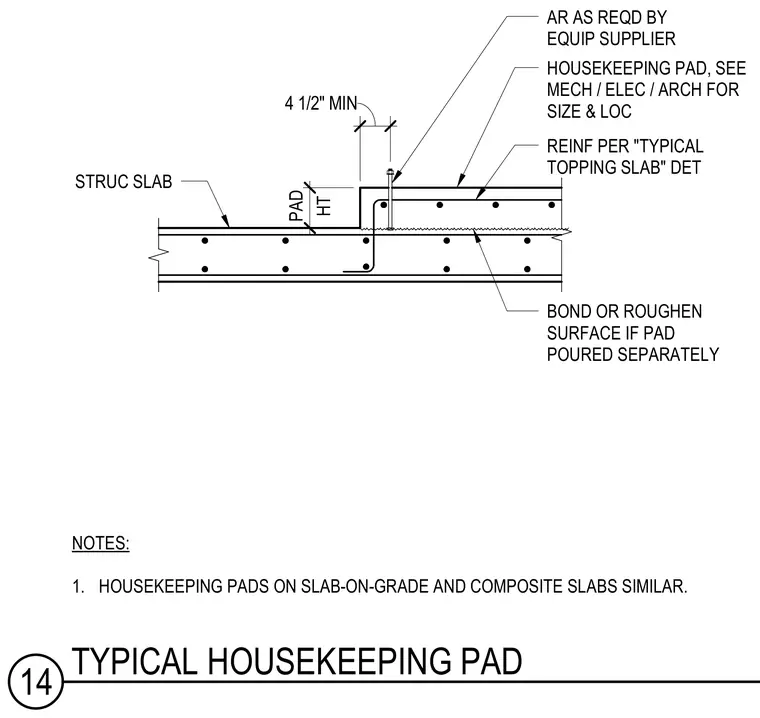

NOTES: 1. HOUSEKEEPING PADS ON SLAB-ON-GRADE AND COMPOSITE SLABS SIMILAR. 4 1/2" MIN BOND OR ROUGHEN SURFACE IF PAD POURED SEPARATELY REINF PER "TYPICAL TOPPING SLAB" DET HOUSEKEEPING PAD, SEE MECH / ELEC / ARCH FOR SIZE & LOC AR AS REQD BY EQUIP SUPPLIER STRUC SLAB 6" PAD HT 14 TYPICAL HOUSEKEEPING PAD
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
