Structural · S-TXF4P

Mechanical Yard Enclosure Wall Detail

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

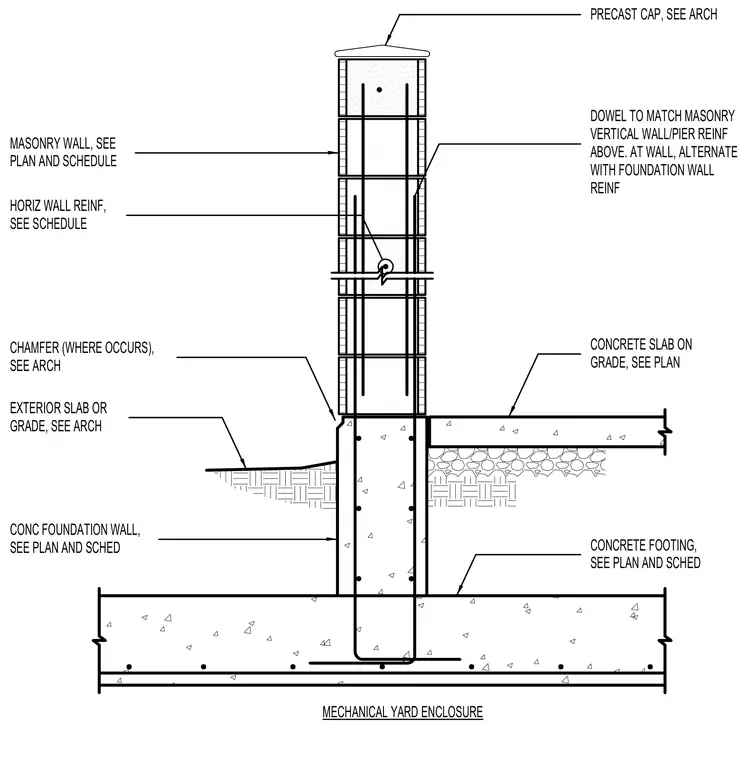

A reinforced concrete footing anchors vertical wall reinforcement that extends up through the concrete foundation wall and alternates with masonry vertical wall or pier reinforcement above. A concrete slab on grade abuts the interior side of the foundation wall, while an exterior slab or grade sits on the exterior side featuring an optional chamfer. The masonry wall is reinforced with horizontal wall reinforcement sized per schedule and topped with a precast cap.
