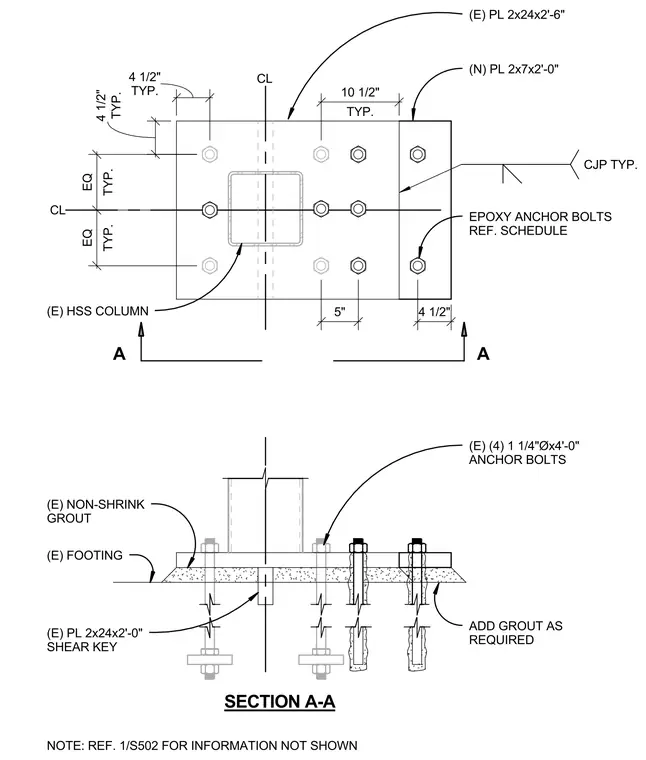

An existing hollow structural section column connects to a concrete footing using an existing 2-inch by 24-inch by 2-foot-6-inch base plate welded to a new 2-inch by 7-inch by 2-foot-0-inch plate with a complete joint penetration weld. Four existing 1-1/4-inch diameter by 4-foot-0-inch anchor bolts secure the assembly alongside epoxy anchor bolts referenced in the schedule. Non-shrink grout is placed beneath the base plate over the footing with additional grout added as required, and an existing 2-inch by 24-inch by 2-foot-0-inch shear key extends below the plate into the footing.
TYP. 4 1/2" (E) PL 2x24x2'-6" (E) HSS COLUMN A A (E) NON-SHRINK GROUT (E) FOOTING (E) (4) 1 1/4"Øx4'-0" ANCHOR BOLTS SECTION A-A TYP. 4 1/2" (E) PL 2x24x2'-0" SHEAR KEY TYP. 10 1/2" CL CL 4 1/2" (N) PL 2x7x2'-0" CJP TYP. 5" TYP. EQ TYP. EQ EPOXY ANCHOR BOLTS REF. SCHEDULE ADD GROUT AS REQUIRED NOTE: REF. 1/S502 FOR INFORMATION NOT SHOWN
