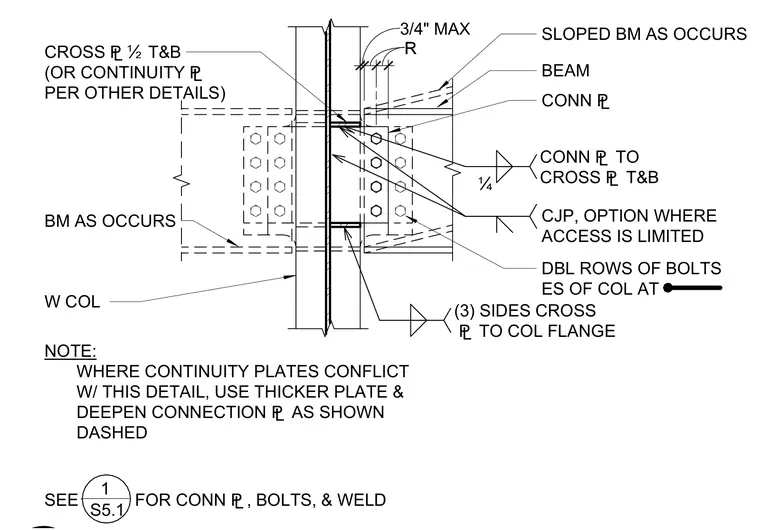

A steel beam frames into the web of a wide-flange column. A one-half-inch thick cross plate or continuity plate is welded top and bottom to the column flange using a three-sided weld, with a complete joint penetration weld option for restricted access. The beam connects via connection plates secured with double rows of bolts on each side of the column. A sloped beam condition is accommodated where applicable, and a note instructs the use of thicker plates and deeper connection plates if continuity plates conflict.
CONN £ SEE FOR CONN £, BOLTS, & WELD NOTE: WHERE CONTINUITY PLATES CONFLICT W/ THIS DETAIL, USE THICKER PLATE & DEEPEN CONNECTION £ AS SHOWN DASHED W COL BEAM CROSS £Ï T&B (OR CONTINUITY £ PER OTHER DETAILS) (3) SIDES CROSS £ TO COL FLANGE 3/4" MAX R DBL ROWS OF BOLTS ES OF COL AT BM AS OCCURS 1 S5.1 ___________ Ë CONN £ TO CROSS £ T&B CJP, OPTION WHERE ACCESS IS LIMITED SLOPED BM AS OCCURS
