A structural ledger and truss seat connection detail includes two three-quarter inch diameter welded headed studs spaced at twenty-four inches on center maximum between joists. Six three-quarter inch diameter welded headed studs are provided at each truss. Dimensions of ten inches, four inches, and one foot zero inches establish the layout and spacing for the assembly.

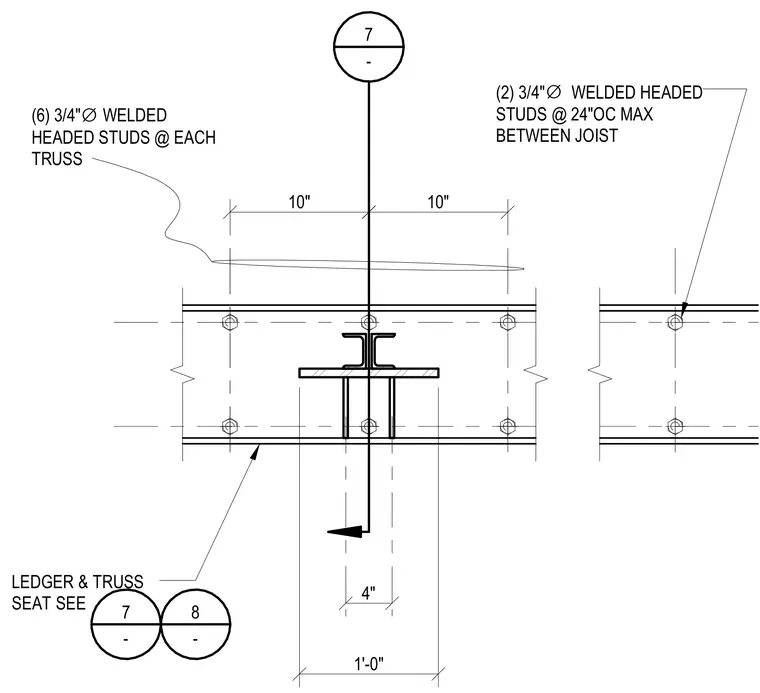

10" 10" 1'-0" 4" LEDGER & TRUSS SEAT SEE (2) 3/4" ∅ WELDED HEADED STUDS @ 24"OC MAX BETWEEN JOIST (6) 3/4" ∅ WELDED HEADED STUDS @ EACH TRUSS 7 - 7 - 8 -
