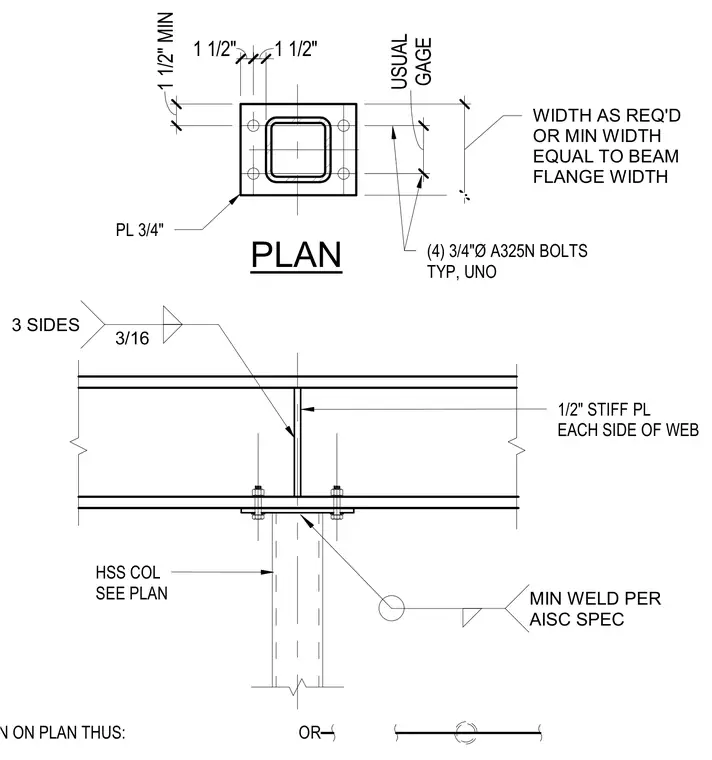

A continuous wide-flange steel beam bears directly on a three-quarter-inch steel plate welded to a hollow structural section column sized per plan. The connection utilizes four three-quarter-inch diameter A325N bolts typically unless otherwise noted, with a plate width matching the beam flange width. One-half-inch stiffener plates are welded to each side of the beam web using three-sixteenth-inch fillet welds on three sides per American Institute of Steel Construction specifications.
SHOWN ON PLAN THUS: OR HSS COL SEE PLAN 1/2" STIFF PL EACH SIDE OF WEB 3/16 3 SIDES MIN WELD PER AISC SPEC PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2"
