Structural · S-TX6JV

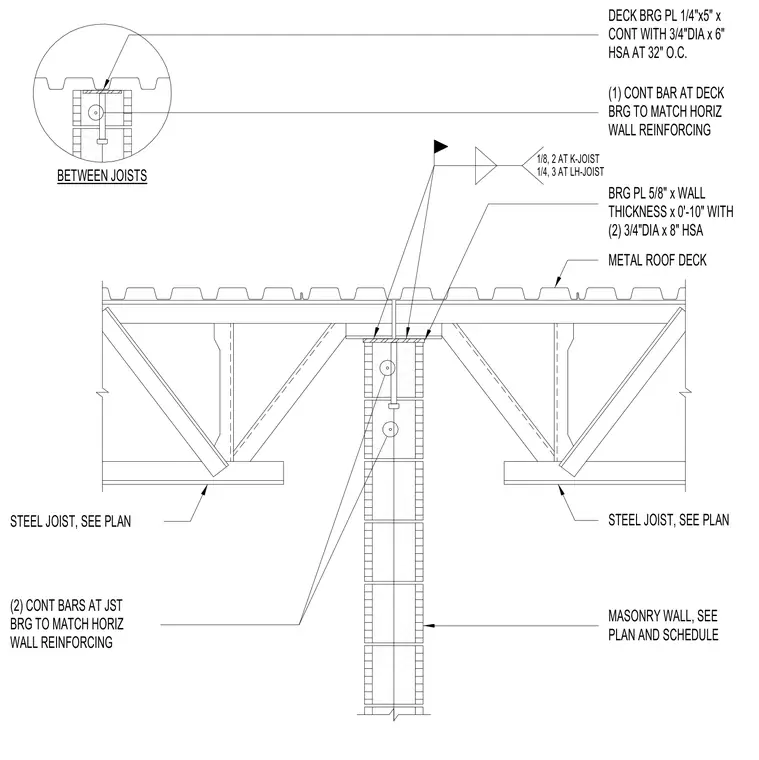

Typical Joist and Deck Bearing at Masonry Wall

Materials

Elements

About this detail

Steel roof joists and a metal roof deck bear on top of a masonry wall via a continuous 5/8-inch thick by wall thickness by 0-foot 10-inch bearing plate anchored with two 3/4-inch diameter by 8-inch heavy-duty structural anchors. Between the joists, a continuous 1/4-inch by 5-inch deck bearing plate is secured with 3/4-inch diameter by 6-inch heavy-duty structural anchors spaced at 32 inches on center. The assembly incorporates two continuous reinforcement bars at the joist bearing matching the horizontal wall reinforcing, along with one continuous bar at the deck bearing. Fillet welds connect the members with sizes specified as 1/8 inch with two passes for K-joists and 1/4 inch with three passes for LH-joists.
