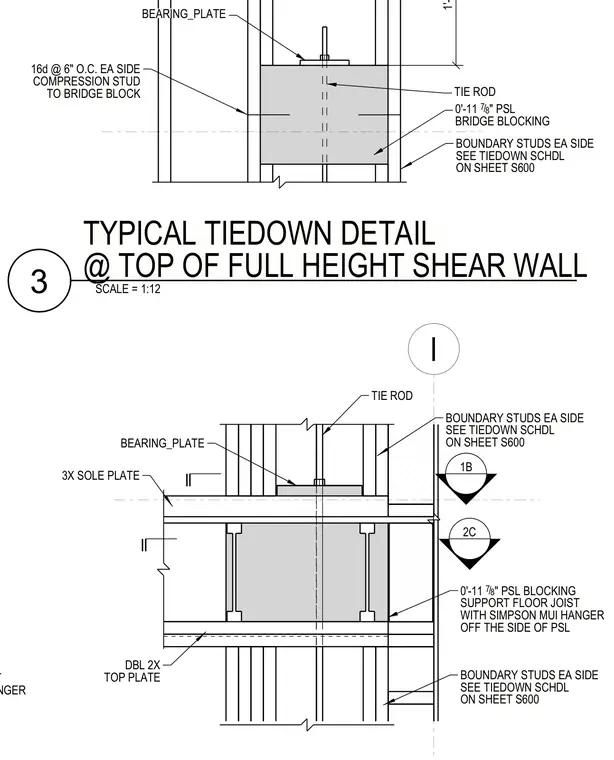

A vertical tie rod passes through a bearing plate resting on a parallel strand lumber blocking member at the top of a full height shear wall. Boundary studs are positioned on each side of the assembly with sizing per the tiedown schedule. A double two-by top plate and triple-x sole plate frame the floor level. Floor joists are supported by Simpson hangers off the side of the parallel strand lumber blocking. Compression studs are connected to the bridge blocking using sixteen-penny nails at six inches on center each side.
TYPICAL TIEDOWN DETAIL @ TOP OF FULL HEIGHT SHEAR WALL SCALE = 1:12 3 I 1B 3X SOLE PLATE 2C ON SHEET S600 SEE TIEDOWN SCHDL BOUNDARY STUDS EA SIDE 0'-11 7 8 / " PSL BLOCKING SUPPORT FLOOR JOIST WITH SIMPSON MUI HANGER OFF THE SIDE OF PSL ON SHEET S600 SEE TIEDOWN SCHDL BOUNDARY STUDS EA SIDE TOP PLATE DBL 2X BEARING_PLATE TIE ROD BEARING_PLATE 1'-0" MIN ON SHEET S600 SEE TIEDOWN SCHDL BOUNDARY STUDS EA SIDE 0'-11 7 8 / " PSL BRIDGE BLOCKING TIE ROD TO BRIDGE BLOCK COMPRESSION STUD 16d @ 6" O.C. EA SIDE SUPPORT FLOOR JOIST WITH SIMPSON MUI HANGER
