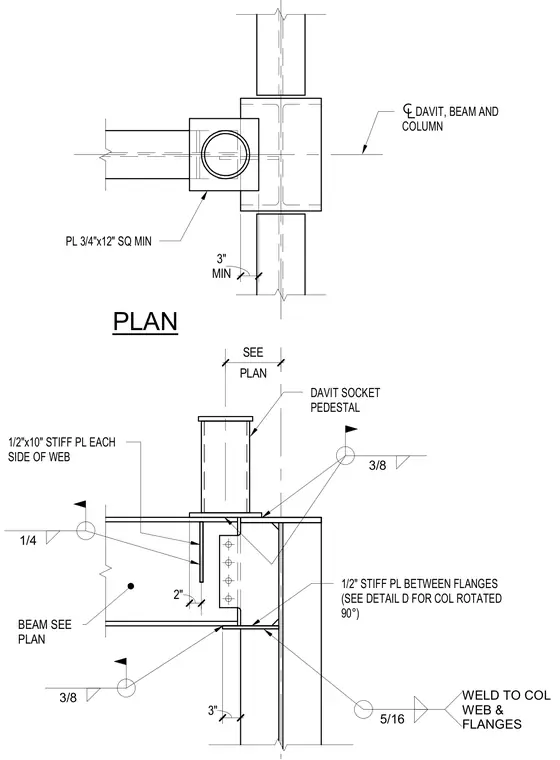

A structural steel davit support offset at a column features a socket pedestal welded to a three-quarter-inch by twelve-inch square base plate. The supporting beam connects to the column web with a shear tab and four bolts. One-half-inch stiffener plates are welded between the beam flanges and on each side of the web. Welds include quarter-inch, three-eighths-inch, and five-sixteenths-inch fillet welds securing the plates to the column web and flanges.
PLAN 1/2" STIFF PL BETWEEN FLANGES (SEE DETAIL D FOR COL ROTATED 90°) DAVIT, BEAM AND COLUMN 1/2"x10" STIFF PL EACH SIDE OF WEB BEAM SEE PLAN DAVIT SOCKET PEDESTAL PL 3/4"x12" SQ MIN 2" 1/4 3/8 3" MIN 3" 5/16 WELD TO COL WEB & FLANGES 3/8 PLAN SEE
