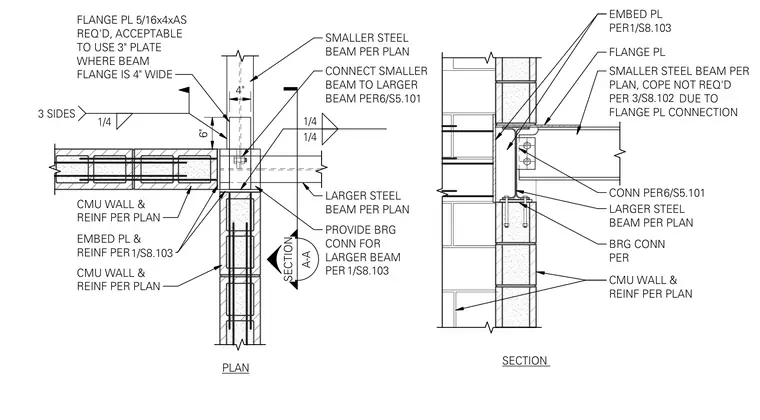

A smaller steel beam frames into a larger steel beam at a concrete masonry unit corner wall. The smaller beam connects to the larger beam via a welded flange plate measuring 5/16 inch by 4 inches, with a 3-inch plate permitted where the beam flange is 4 inches wide. A quarter-inch fillet weld is applied on three sides of the flange connection. The larger steel beam bears on an embed plate within the masonry wall, with reinforcing provided per plan. A cope is not required for the smaller beam due to the flange plate connection configuration. Bearing connections and embed plates are detailed per accompanying structural sheets.
SECTION A-A 1/4 1/4 6" 4" SMALLER STEEL BEAM PER PLAN LARGER STEEL BEAM PER PLAN CONNECT SMALLER BEAM TO LARGER BEAM PER PROVIDE BRG CONN FOR LARGER BEAM PER FLANGE PL 5/16x4xAS REQ'D, ACCEPTABLE TO USE 3" PLATE WHERE BEAM FLANGE IS 4" WIDE 1/4 3 SIDES EMBED PL & REINF PER CMU WALL & REINF PER PLAN CMU WALL & REINF PER PLAN PLAN SECTION SMALLER STEEL BEAM PER PLAN, COPE NOT REQ'D PER DUE TO FLANGE PL CONNECTION LARGER STEEL BEAM PER PLAN FLANGE PL CONN PER BRG CONN PER CMU WALL & REINF PER PLAN EMBED PL PER 1/S8.103 1/S8.103 1/S8.103 6/S5.101 6/S5.101 3/S8.102
