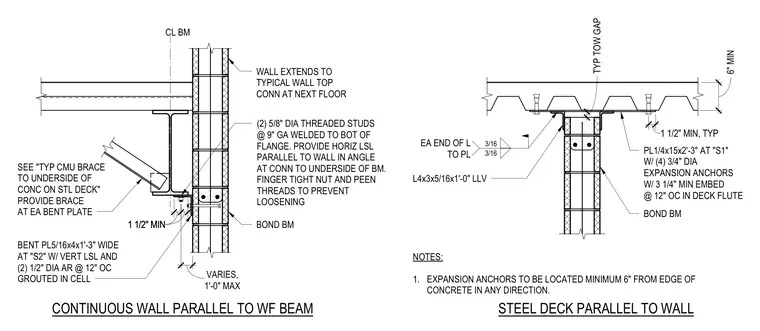

A continuous masonry wall runs parallel to a wide flange steel beam supporting a concrete slab on steel deck. The wall connects to the underside of the beam using an L4x3x5/16 by one-foot angle welded with three-sixteenths fillet welds at each end to a plate, and secured with two five-eighths-inch diameter threaded studs at nine-inch gauge welded to the bottom flange with finger-tight nuts and peened threads. A bent plate measuring five-sixteenths by four inches by one foot three inches wide is installed with a vertical lateral slip link and two one-half-inch diameter anchor rods at twelve inches on center grouted in the cell. A plate measuring one-quarter by fifteen inches by two feet three inches is anchored to the concrete deck flute with four three-quarter-inch diameter expansion anchors with a three-and-one-quarter-inch minimum embedment at twelve inches on center.
PL1/4x15x2'-3" AT "S1" W/ (4) 3/4" DIA EXPANSION ANCHORS W/ 3 1/4" MIN EMBED @ 12" OC IN DECK FLUTE BOND BM L4x3x5/16x1'-0" LLV EA END OF L TO PL 3/16 3/16 STEEL DECK PARALLEL TO WALL 1 1/2" MIN, TYP TYP TOW GAP 1 1/4" CL BM 2 1/2" BOND BM SEE "TYP CMU BRACE TO UNDERSIDE OF CONC ON STL DECK" PROVIDE BRACE AT EA BENT PLATE BENT PL5/16x4x1'-3" WIDE AT "S2" W/ VERT LSL AND (2) 1/2" DIA AR @ 12" OC GROUTED IN CELL CONTINUOUS WALL PARALLEL TO WF BEAM VARIES, 1'-0" MAX WALL EXTENDS TO TYPICAL WALL TOP CONN AT NEXT FLOOR 1 1/2" MIN 1 1/2" MIN (2) 5/8" DIA THREADED STUDS @ 9" GA WELDED TO BOT OF FLANGE. PROVIDE HORIZ LSL PARALLEL TO WALL IN ANGLE AT CONN TO UNDERSIDE OF BM. FINGER TIGHT NUT AND PEEN THREADS TO PREVENT LOOSENING 6" 6" MIN NOTES: 1. EXPANSION ANCHORS TO BE LOCATED MINIMUM 6" FROM EDGE OF CONCRETE IN ANY DIRECTION.
