A Unistrut P1000 channel is suspended from a metal deck using half-inch diameter A36 threaded rods spaced continuously at six feet on center maximum. The rods attach to Unistrut P1000 channels secured in the metal deck flutes using three-quarter-inch diameter DICA anchors and P1064 plates with P1010 half-inch diameter spring nuts. A diagonal brace uses a three-quarter-inch diameter DICA anchor into the deck. Unistrut P2485 cradle clips are spaced at eighteen inches on center around the threaded rods.

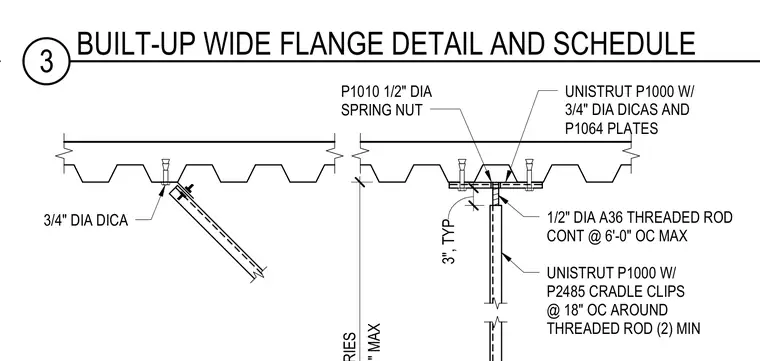

3", TYP 3/4" DIA DICA P1010 1/2" DIA SPRING NUT UNISTRUT P1000 W/ 3/4" DIA DICAS AND P1064 PLATES 1/2" DIA A36 THREADED ROD CONT @ 6'-0" OC MAX UNISTRUT P1000 W/ P2485 CRADLE CLIPS @ 18" OC AROUND THREADED ROD (2) MIN 3 BUILT-UP WIDE FLANGE DETAIL AND SCHEDULE
