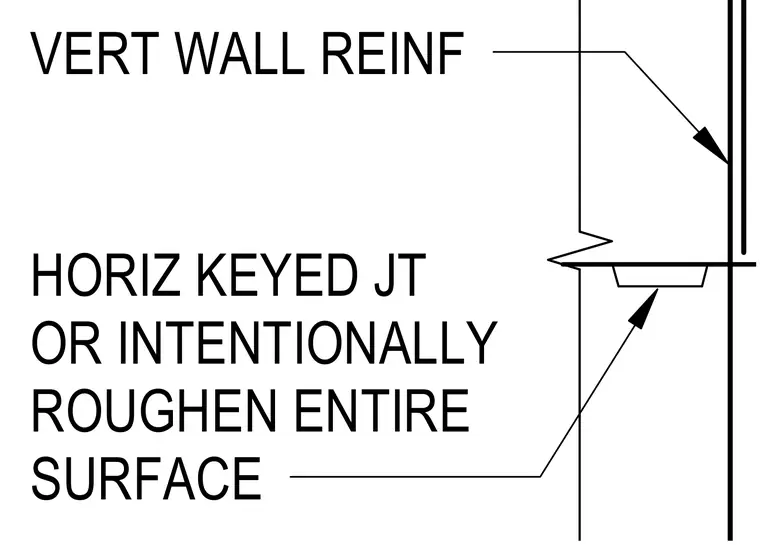

Vertical wall reinforcement continues across the construction joint. The horizontal joint features a keyed profile or an intentionally roughened entire surface to ensure proper load transfer between concrete pours.
