A wide-flange steel beam connects to a supporting member web using a shear plate and bolts sized per schedule. The bottom flange of the supported beam is coped on one side with a two-inch minimum clearance from the face of the web. The shear plate features a one-half-inch maximum offset from the face of the web, with plate thickness matching the opposite side. Welds are applied to three sides per schedule. Full-height shear plates are used on both sides where noted on plan.

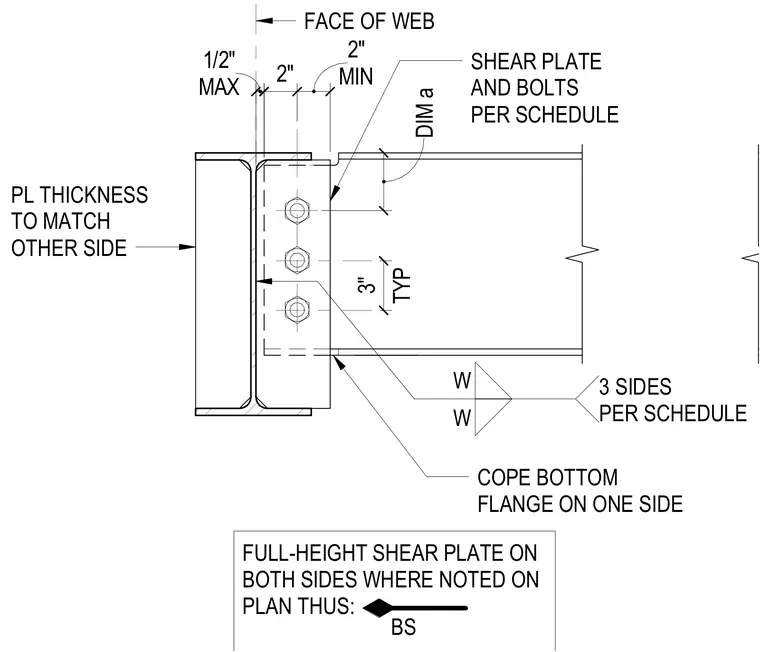

W W 3 SIDES PER SCHEDULE SHEAR PLATE AND BOLTS PER SCHEDULE COPE BOTTOM FLANGE ON ONE SIDE 2" MIN 2" FULL-HEIGHT SHEAR PLATE ON BOTH SIDES WHERE NOTED ON PLAN THUS: BS DIM a TYP 3" MAX 1/2" FACE OF WEB PL THICKNESS TO MATCH OTHER SIDE
